Product CatalogPart Number
78RB10ST
Manufacturer
Grayhill Inc.Description
SWITCH SLIDE DIP SPST 0.15A 30V
Datasheet
DatasheetPackage
-
In Stock
22,188 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
78RB10ST
78RB10ST

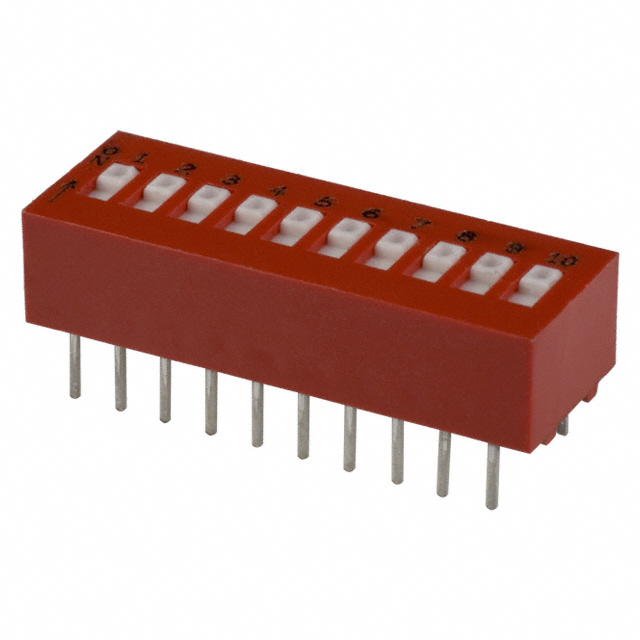

lmages are for reference only.Payment Methods
Delivery Services
Dip Switch SPST 10 Position Through Hole Slide (Standard) Actuator 150mA 30VDC
Quick Inquiry
78RB10ST
Specifications
| Category | Switches - DIP Switches - |
| Manufacturer | Grayhill Inc. |
| Series | 78 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Circuit | SPST |
| Number of Positions | 10 |
| Current Rating (Amps) | 150mA |
| Voltage Rating | 30VDC |
| Actuator Type | Slide (Standard) |
| Actuator Level | Flush, Recessed |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Height Above Board | 0.265" (6.73mm) |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Pitch | 0.100" (2.54mm), Full |
| Washable | Yes |
| Features | Tape Seal |
| Operating Temperature | -40°C ~ 85°C |
| Body Material | Thermoplastic |
| Length | 1.080" (27.43mm) |
| Mechanical Life | 2,000 Cycles |
| Electrical Life | 2,000 Cycles |
| Base Product Number | 78RB10 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 78RB10S | 78RB10 | 78RB10T | 78RB12 |
| Manufacturer | Grayhill Inc. | Grayhill Inc. | Grayhill Inc. | Grayhill Inc. |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | SWITCH SLIDE DIP SPST 0.15A 30V | SWITCH SLIDE DIP SPST 0.15A 30V | SWITCH SLIDE DIP SPST 0.15A 30V | SWITCH SLIDE DIP SPST 0.15A 30V |
| Series | 78 | 78 | 78 | 78 |
| Packaging | Bag | Bag | Tube | Bag |
