Product CatalogPart Number
7914S-1-032
Manufacturer
Bourns Inc.Description
SWITCH TACTILE SPST-NO 0.1A 16V
Datasheet
DatasheetPackage
-
In Stock
69,929 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
7914S-1-032
7914S-1-032
lmages are for reference only.Payment Methods
Delivery Services
Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle
Quick Inquiry
7914S-1-032
Specifications
| Category | Switches - Tactile Switches - |
| Manufacturer | Bourns Inc. |
| Series | 7914 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Contact Rating @ Voltage | 0.1A @ 16VAC/DC |
| Actuator Type | Standard |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Height off PCB, Vertical | - |
| Actuator Length, Right Angle | - |
| Actuator Orientation | Side Actuated |
| Termination Style | SMD (SMT) Tab |
| Outline | 5.00mm x 5.18mm |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Operating Force | 300gf |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Actuator Material | Silicone Rubber |
| Switch Travel | - |
| Mechanical Life | 100,000 Cycles |
| Base Product Number | 7914S |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

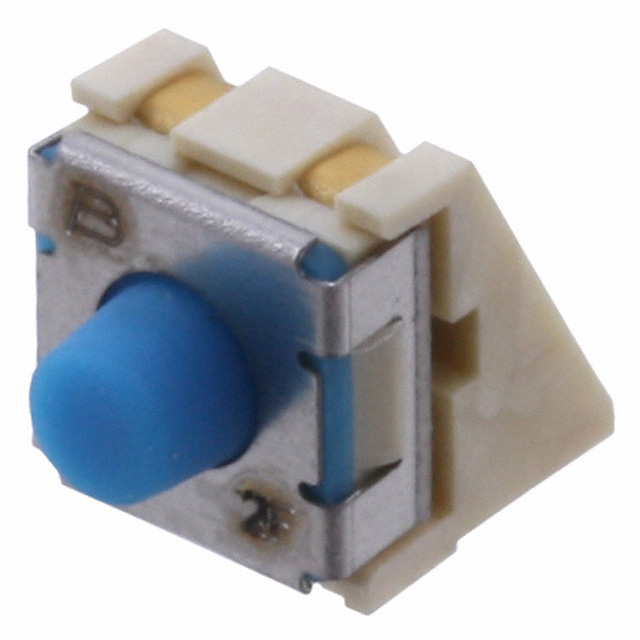

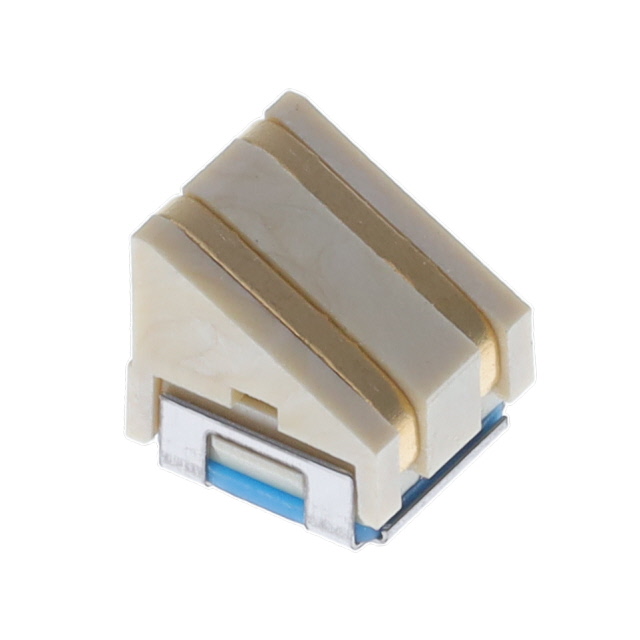

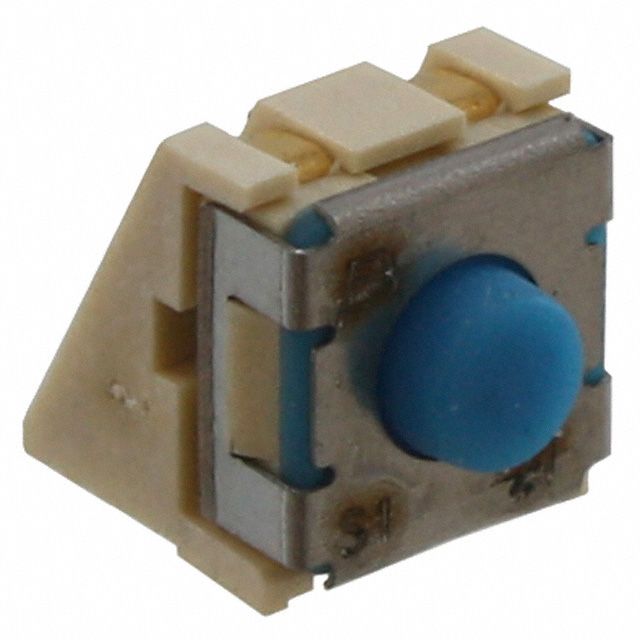

| Part Number | 7914S-1-032E | 7914S-1-000 | 7914S-1-000E | 7914S-1-024E |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SWITCH TACTILE SPST-NO 0.1A 16V | SWITCH TACTILE SPST-NO 0.1A 16V | SWITCH TACTILE SPST-NO 0.1A 16V | SWITCH TACTILE SPST-NO 0.1A 16V |
| Series | 7914 | 7914 | 7914 | 7914 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Tube | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> |
