8-1393813-4
lmages are for reference only.8-1393813-4
RELAY GENERAL PURPOSE 45V
Datasheet-
51,332 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay Socketable
8-1393813-4
| Category | Relays - Signal Relays-Up to 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | V23054, AXICOM |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Socketable |
| Coil Voltage | 45VDC |
| Contact Form | - |
| Contact Rating (Current) | - |
| Switching Voltage | - |
| Load - Max Switching | - |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Plug In |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | - |
| Must Release Voltage | - |
| Operate Time | 16 ms |
| Release Time | 2 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver (Ag), Gold (Au) |
| Approval Agency | - |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Base Product Number | 1393813 |
| Coil Current | 23.7 mA |
| Coil Resistance | 1.9 kOhms |
| Product Attribute | |
|
|
|

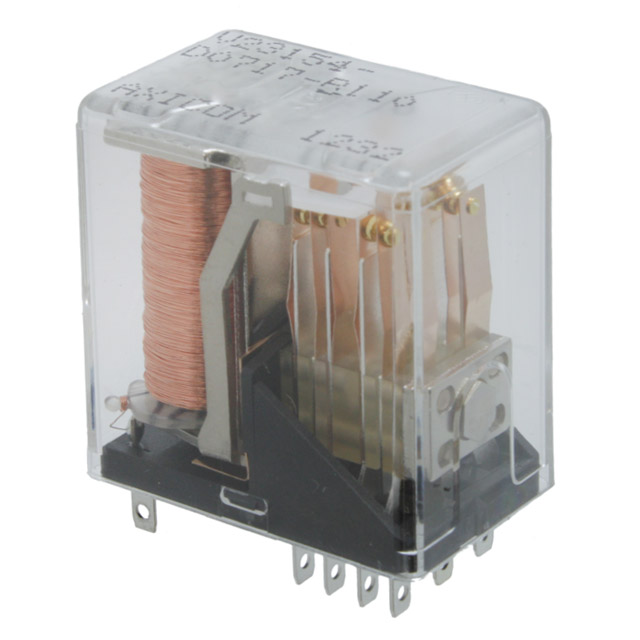

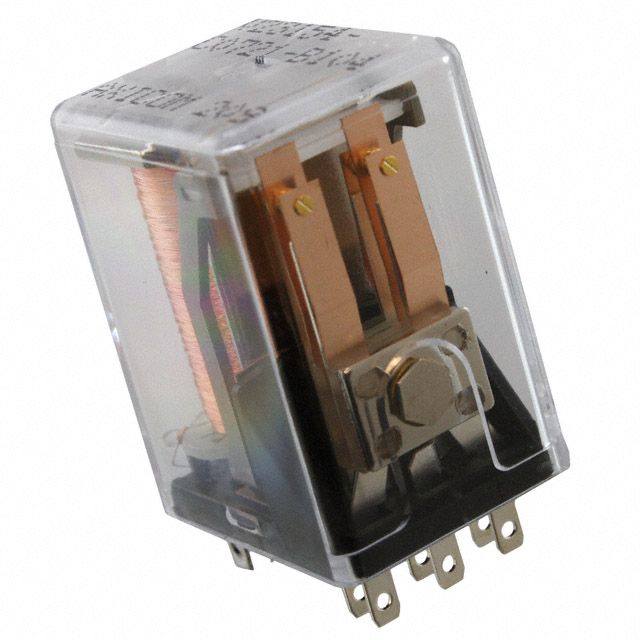

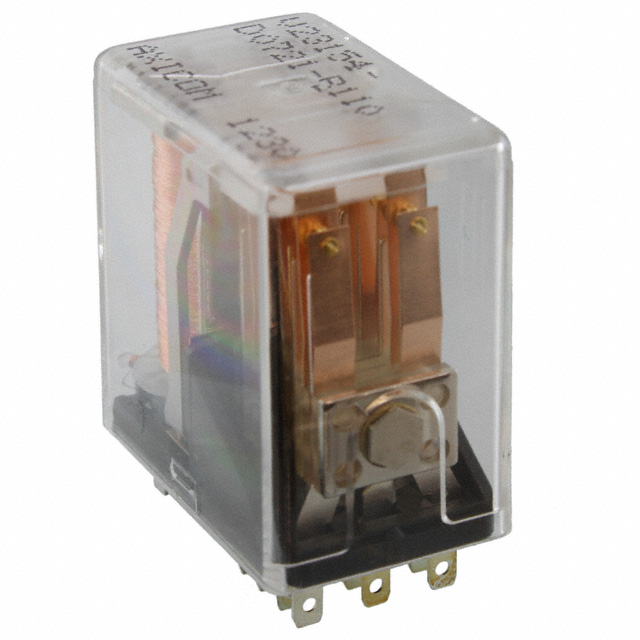

| Part Number | 8-1393813-0 | 8-1393813-6 | 8-1393810-5 | 8-1393810-6 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RELAY GENERAL PURPOSE 24V | RELAY GENERAL PURPOSE 60V | RELAY GENERAL PURPOSE 2A 48V | RELAY GENERAL PURPOSE 2A 48V |
| Series | V23054, AXICOM | V23054, AXICOM | V23154, AXICOM | V23154, AXICOM |
| Packaging | Bulk | Bulk | Bulk | Bulk |
