8-1419132-8
lmages are for reference only.8-1419132-8
RELAY GEN PURPOSE 4PDT 6A
Datasheet-
39,166 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay 4PDT (4 Form C) Coil Socketable
8-1419132-8
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | PT, SCHRACK |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Socketable |
| Coil Voltage | - |
| Contact Form | 4PDT (4 Form C) |
| Contact Rating (Current) | 6 A |
| Switching Voltage | 240VAC - Max |
| Load - Max Switching | 1440VA |
| Coil Current | - |
| Coil Type | Non Latching |
| Features | Test Button |
| Termination Style | Plug In, Quick Connect - 0.110" (2.8mm) |
| Seal Rating | Sealed - Flux Protection |
| Coil Insulation | Class F |
| Must Operate Voltage | - |
| Must Release Voltage | - |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver Nickel (AgNi) |
| Approval Agency | cURus, VDE |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | - |
| Base Product Number | PT570 |
| Product Attribute |  |
 |
 |
 |

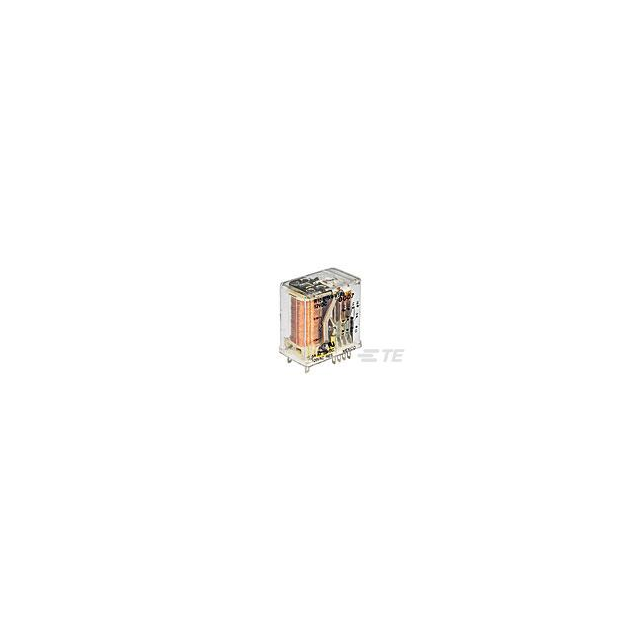

| Part Number | 8-1419135-6 | 8-1419137-4 | 8-1415013-1 | 8-1415014-1 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | R10-E1X4-V52=R10 | V23086C2002A403 | RELAY GEN PURPOSE 3PDT 10A 250V | RELAY GEN PURP |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Packaging | Box | Box | Bulk | Bulk |
