8-435470-1
lmages are for reference only.8-435470-1
SW TOGGLE DIP DPDT 0.025A 24V
Datasheet-
58,891 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Dip Switch DPDT 1 Position Through Hole Toggle Actuator 25mA 24VDC
8-435470-1
| Category | Switches - DIP Switches - |
| Manufacturer | TE Connectivity ALCOSWITCH Switches |
| Series | 7000 |
| Packaging | Tube |
| RoHS Status | Not applicable |
| Circuit | DPDT |
| Number of Positions | 1 |
| Current Rating (Amps) | 25mA |
| Voltage Rating | 24VDC |
| Actuator Type | Toggle |
| Actuator Level | Raised |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Height Above Board | 0.460" (11.68mm) |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Pitch | 0.100" (2.54mm), Full |
| Washable | No |
| Features | - |
| Operating Temperature | -55°C ~ 105°C |
| Body Material | Polyester (PET), Glass Filled |
| Length | 0.480" (12.19mm) |
| Mechanical Life | 7,000 Cycles |
| Electrical Life | 7,000 Cycles |
| Base Product Number | 8-435470 |
| Product Attribute |  |
 |
 |
 |

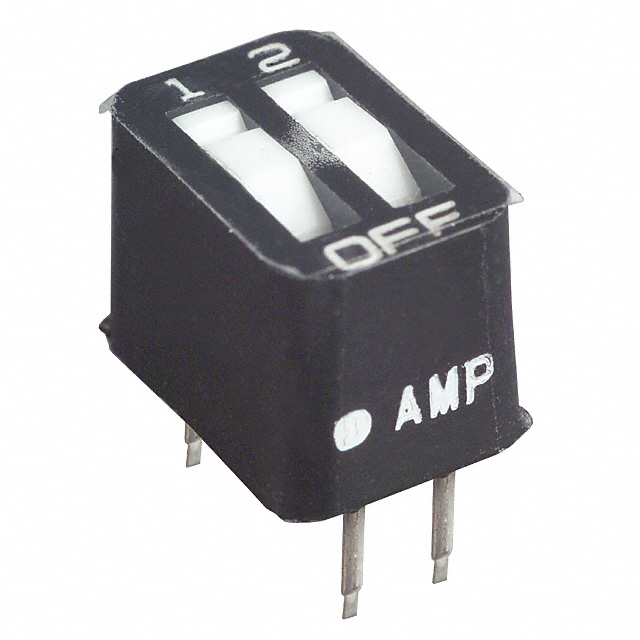

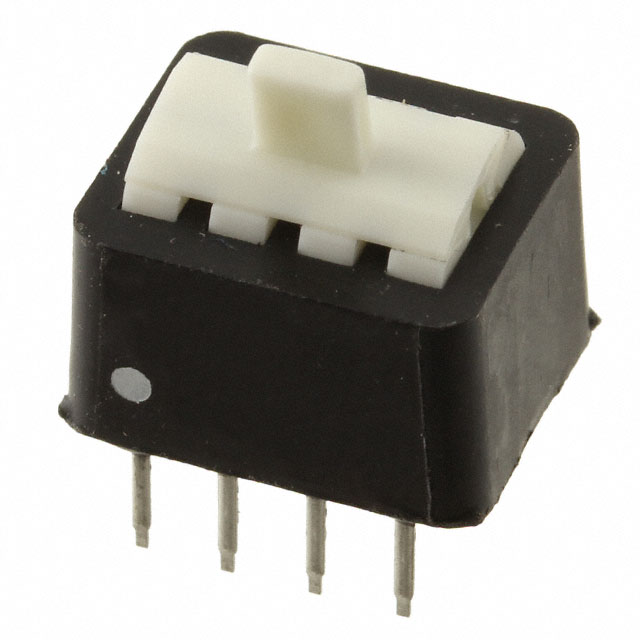

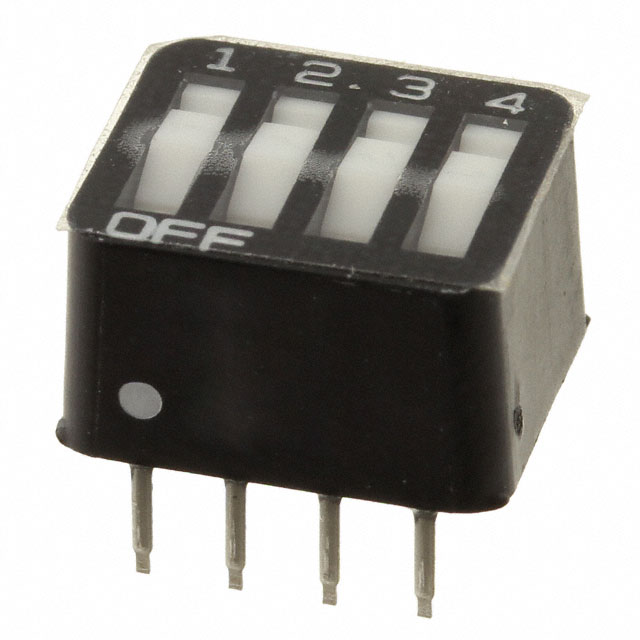

| Part Number | 8-435469-1 | 8-435626-6 | 8-435626-8 | CRE04ROTM0S |
| Manufacturer | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | C&K |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SW TOGGLE DIP 4PST 0.025A 24V | SW ROCKER DIP SPST 0.025A 24V | SWITCH ROCKER DIP SPST | SWITCH ROTARY DIP BCD 0.15A 42V |
| Series | 7000 | 7000 | 7000 | CRE |
| Packaging | Tube | Tube | Tape & Reel (TR) | Tube |
