8020.2093

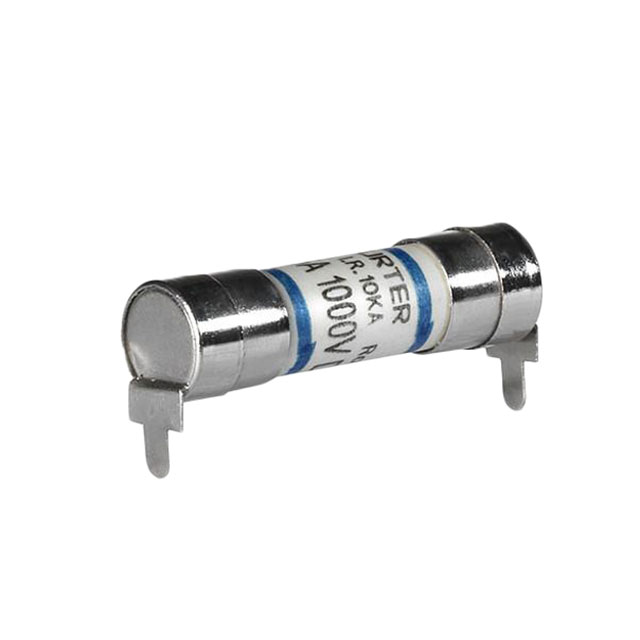

lmages are for reference only.8020.2093
FUSE CARTRIDGE 30A 275VAC/1KVDC
Datasheet5AG, 10mm x 38mm (Midget)
80,905 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
30A 275 VAC 1 kVDC Fuse Cartridge Through Hole
8020.2093
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | SCHURTER Inc. |
| Series | AEO 10.3x38 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 30A |
| Voltage Rating - AC | 275 VAC |
| Response Time | Slow Blow |
| Applications | Automotive |
| Features | - |
| Class | - |
| Approval Agency | CE, cURus |
| Operating Temperature | -40°C ~ 125°C |
| Breaking Capacity @ Rated Voltage | 10kA AC, 20kA DC |
| Package / Case | 5AG, 10mm x 38mm (Midget) |
| Size / Dimension | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) |
| Base Product Number | - |
| Voltage Rating - DC | 1 kVDC |
| Grade | Automotive |
| Qualification | AEC-Q200 |
| Melting I²t | 3150.0 |
| DC Cold Resistance | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | 8020.2090 | 8020.2091 | 8020.2092 | 8020.2094 |
| Manufacturer | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FUSE CARTRIDGE 10A 275VAC/1KVDC | FUSE CARTRIDGE 15A 275VAC/1KVDC | FUSE CARTRIDGE 20A 275VAC/1KVDC | FUSE CARTRIDGE 40A 275VAC/800VDC |
| Series | AEO 10.3x38 | AEO 10.3x38 | AEO 10.3x38 | AEO 10.3x38 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
