100000 µF 80 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 3000 Hrs @ 85°C
80LSQ100000MNB77X141
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Rubycon |
| Series | LSQ |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 100000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 21.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 23.65 A @ 10 kHz |
| Lead Spacing | 1.236" (31.40mm) |
| Size / Dimension | 3.032" Dia (77.00mm) |
| Height - Seated (Max) | 5.630" (143.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Base Product Number | - |
| Impedance | - |
| Product Attribute | |
 |
|
 |

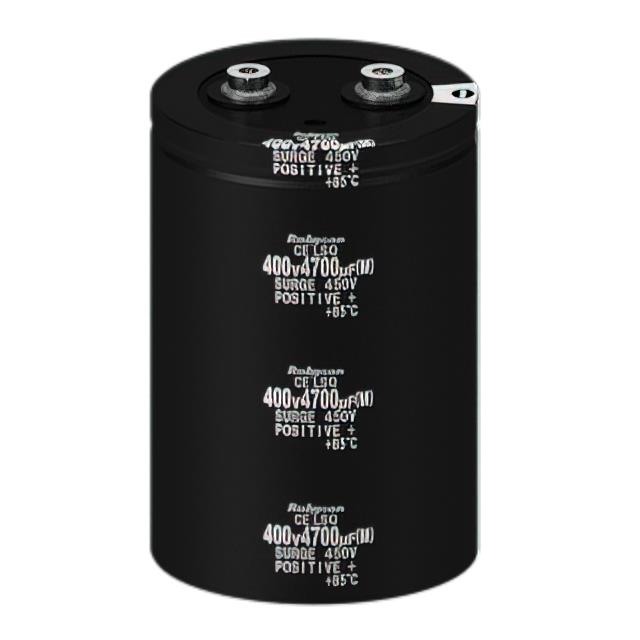

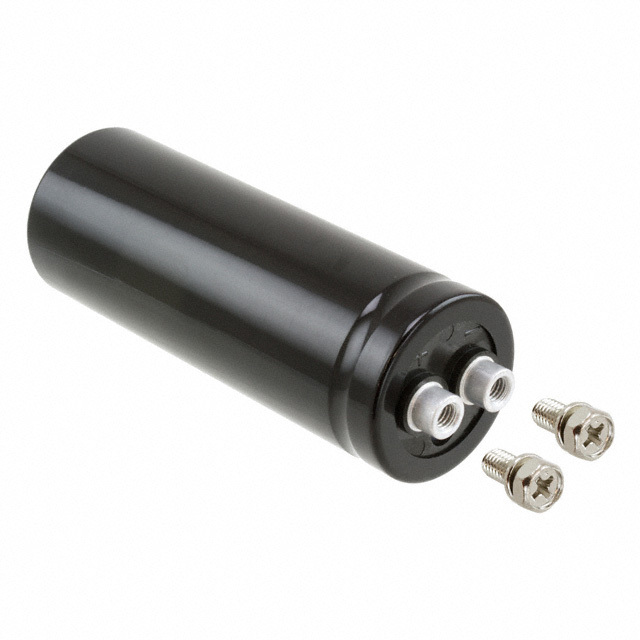

| Part Number | 80LSQ100000MEFC77X141 | 80LSQ10000MEFC36X98 | 80LSQ12000MEFC36X118 | 80LSQ22000MEFC51X83 |
| Manufacturer | Rubycon | Rubycon | Rubycon | Rubycon |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 100000UF 20% 80V SCREW | CAP ALUM 10000UF 20% 80V SCREW | CAP ALUM 12000UF 20% 80V SCREW | CAP ALUM 22000UF 20% 80V SCREW |
| Series | Rubycon | Rubycon | Rubycon | Rubycon |
| Packaging | Bulk | Bulk | Bulk | Bulk |
