Product CatalogPart Number
828-AG12D-ES-LF
Manufacturer
TE Connectivity AMP ConnectorsDescription
CONN IC DIP SOCKET 28POS TIN
Datasheet
DatasheetPackage
-
In Stock
39,191 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
828-AG12D-ES-LF
828-AG12D-ES-LF

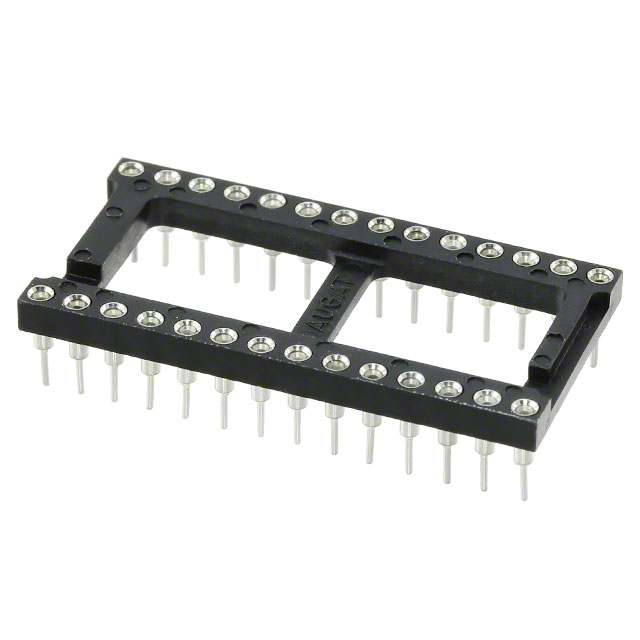

lmages are for reference only.Payment Methods
Delivery Services
28 (2 x 14) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Tin Through Hole, Right Angle, Vertical
Quick Inquiry
828-AG12D-ES-LF
Specifications
| Category | Connectors, Interconnects - Sockets for ICs-Transistors - IC Sockets |
| Manufacturer | TE Connectivity AMP Connectors |
| Series | 800 |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Type | DIP, 0.6" (15.24mm) Row Spacing |
| Number of Positions or Pins (Grid) | 28 (2 x 14) |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Material - Mating | Beryllium Copper |
| Mounting Type | Through Hole, Right Angle, Vertical |
| Features | Open Frame |
| Termination | Solder |
| Pitch - Post | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | - |
| Contact Material - Post | Copper |
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Operating Temperature | -55°C ~ 105°C |
| Termination Post Length | 0.125" (3.18mm) |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | - |
| Contact Resistance | 10mOhm |
| Base Product Number | 828 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

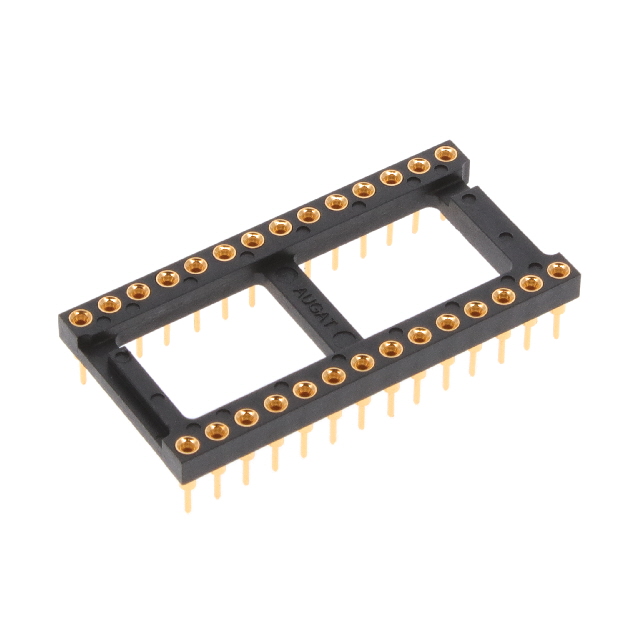

| Part Number | 828-AG12D | 828-AG10D | 828-AG11D | 828-AG11D-ES |
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| RoHS Status | Not applicable | RoHS Compliant | RoHS non-compliant | RoHS non-compliant |
| Description | CONN IC DIP SOCKET 28POS TINLEAD | CONN IC DIP SOCKET 28POS GOLD | CONN IC DIP SOCKET 28POS GOLD | CONN IC DIP SOCKET 28POS GOLD |
| Series | 800 | 800 | 800 | 800 |
| Packaging | Tube | Tube | Tube | Tube |
