Product CatalogPart Number
8501RS24P14V20
Manufacturer
Schneider ElectricDescription
RELAY 240VAC 3A TYPE R +OPTIONS
Datasheet
DatasheetPackage
-
In Stock
14,046 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
8501RS24P14V20
8501RS24P14V20
lmages are for reference only.Payment Methods
Delivery Services
General Purpose Relay 4PDT (4 Form C) 120VAC Coil Socketable
Quick Inquiry
8501RS24P14V20
Specifications
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | Schneider Electric |
| Series | Square D 8501R |
| Packaging | Box |
| RoHS Status | |
| Mounting Type | Socketable |
| Coil Voltage | 120VAC |
| Contact Form | 4PDT (4 Form C) |
| Contact Rating (Current) | 3 A |
| Switching Voltage | 300VAC - Max |
| Load - Max Switching | 900VA |
| Coil Current | - |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Plug In |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | - |
| Must Release Voltage | - |
| Operate Time | 20 ms |
| Release Time | 20 ms |
| Operating Temperature | -40°C ~ 55°C |
| Contact Material | Silver (Ag), Gold (Au) |
| Approval Agency | - |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | - |
| Base Product Number | 8501RS |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

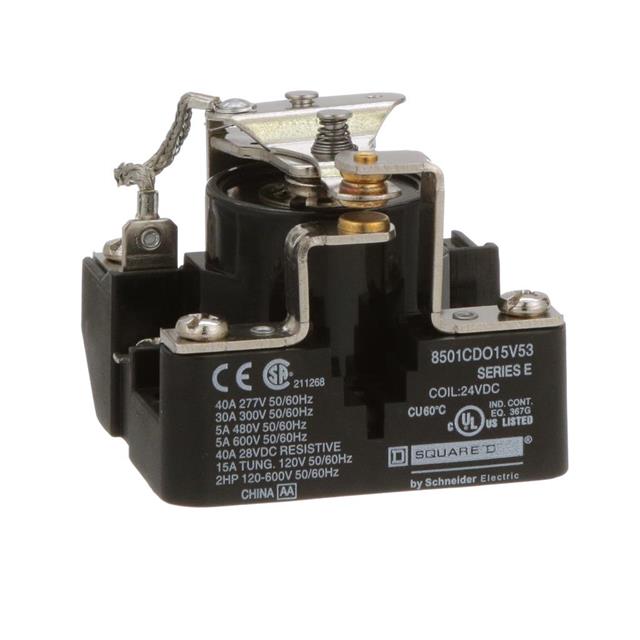

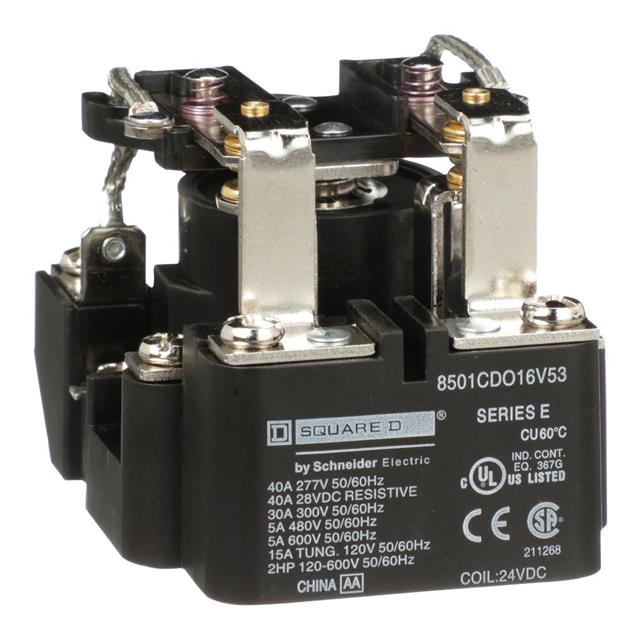

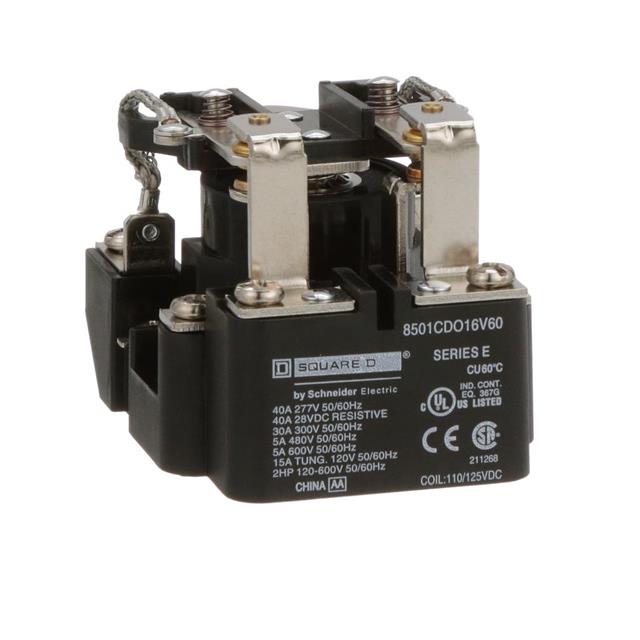

| Part Number | 8501RS24V20 | 8501CDO15V53 | 8501CDO16V53 | 8501CDO16V60 |
| Manufacturer | Schneider Electric | Schneider Electric | Schneider Electric | Schneider Electric |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | PLUG IN RELAY, TYPE R, MINIATURE | POWER RELAY, TYPE C, 2 HP, 30A R | POWER RELAY, TYPE C, 2 HP, 30A R | POWER RELAY, TYPE C, 2 HP, 30A R |
| Series | Schneider Electric | Schneider Electric | Schneider Electric | Schneider Electric |
| Packaging | Box | Box | Box | Box |
