Product CatalogPart Number
89099-165LF
Manufacturer
Amphenol ICC (FCI)Description
CONN HEADER BLADE PWR 10POS PCB
Datasheet
DatasheetPackage
-
In Stock
26,364 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
89099-165LF
89099-165LF
lmages are for reference only.Payment Methods
Delivery Services
10 Connector Header, Male Blades Through Hole Natural, White Blade Power
Quick Inquiry
89099-165LF
Specifications
| Category | Connectors, Interconnects - Backplane Connectors - Specialized |
| Manufacturer | Amphenol ICC (FCI) |
| Series | Metral® |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Connector Usage | - |
| Connector Type | Header, Male Blades |
| Connector Style | Blade Power |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Pitch | 0.236" (6.00mm) |
| Number of Rows | 5 |
| Number of Columns | - |
| Mounting Type | Through Hole |
| Termination | Press-Fit |
| Contact Layout, Typical | 10 Power |
| Features | - |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Color | Natural, White |
| Current Rating (Amps) | 3A |
| Material Flammability Rating | UL94 V-0 |
| Operating Temperature | -55°C ~ 125°C |
| Voltage Rating | - |
| Base Product Number | 89099 |
Parts with Similar Specifications
| Product Attribute | |
|
|
|
| Part Number | 89099-161 | 89099-161LF | 89099-165 | 89099-168LF |
| Manufacturer | Amphenol ICC (FCI) | Amphenol ICC (FCI) | Amphenol ICC (FCI) | Amphenol ICC (FCI) |
| RoHS Status | RoHS non-compliant | RoHS Compliant | RoHS Compliant | |
| Description | 161 METRAL PWR HDR 1MX5R PF | CONN HEADER BLADE PWR 10POS PCB | CONN HEADER BLADE PWR 10POS PCB | CONN HEADER BLADE PWR 10POS PCB |
| Series | Metral® | Metral® | Metral® | Metral® |
| Packaging | Tube | Tube | Tube | Tube |
Customers Also Interested in
Recommended Products
89099-101
Amphenol ICC (FCI)
89099-101LF
Amphenol ICC (FCI)
89099-102LF
Amphenol ICC (FCI)
89099-105
Amphenol ICC (FCI)
89099-105LF
Amphenol ICC (FCI)
89099-106LF
Amphenol ICC (FCI)
89099-107LF
Amphenol ICC (FCI)
89099-110
Amphenol ICC (FCI)

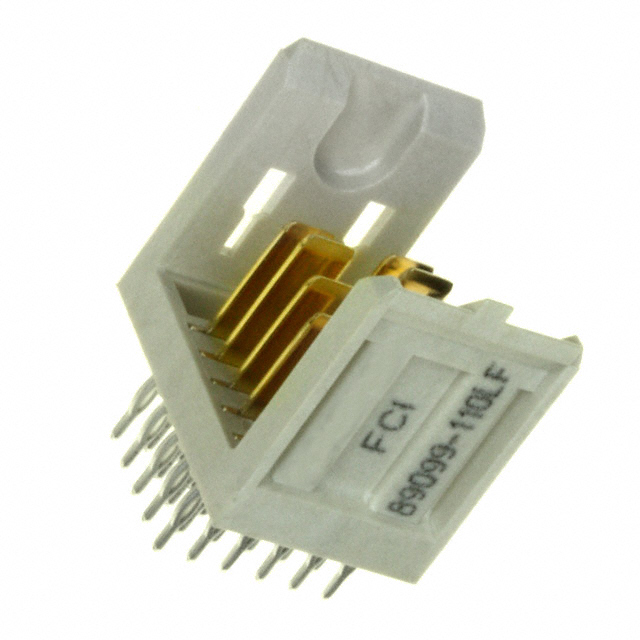

89099-110LF
Amphenol ICC (FCI)
89099-111
Amphenol ICC (FCI)
89099-111LF
Amphenol ICC (FCI)
89099-112
Amphenol ICC (FCI)

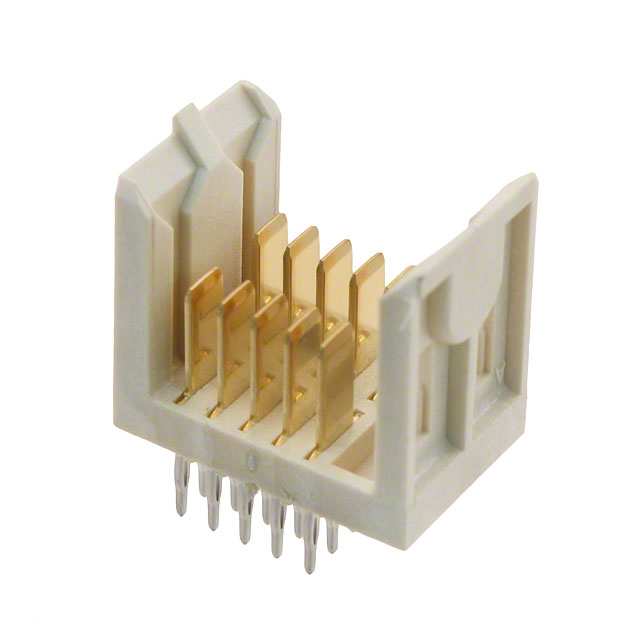

89099-112LF
