RELAY GEN PURPOSE SPST 16A 12V
Datasheet-
85,894 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
9-1415535-3
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | 410 63, SCHRACK |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 16 A |
| Switching Voltage | 400VAC - Max |
| Load - Max Switching | - |
| Coil Current | 30 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin, Quick Connect - 0.250" (6.3mm) |
| Seal Rating | Sealed - Flux Protection |
| Coil Insulation | Class F |
| Must Operate Voltage | 7.3 VDC |
| Must Release Voltage | 0.9 VDC |
| Operate Time | - |
| Release Time | - |
| Operating Temperature | -20°C ~ 125°C |
| Contact Material | Silver Nickel (AgNi) |
| Approval Agency | - |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 400 Ohms |
| Base Product Number | 1415535 |
| Product Attribute |  |
 |
 |
 |
| Part Number | 9-1415535-4 | 9-1415534-0 | 9-1415536-1 | 9-1415536-4 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

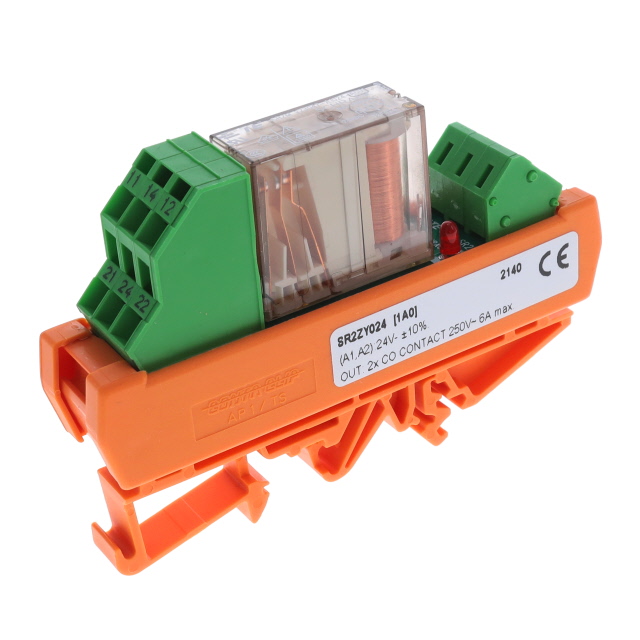

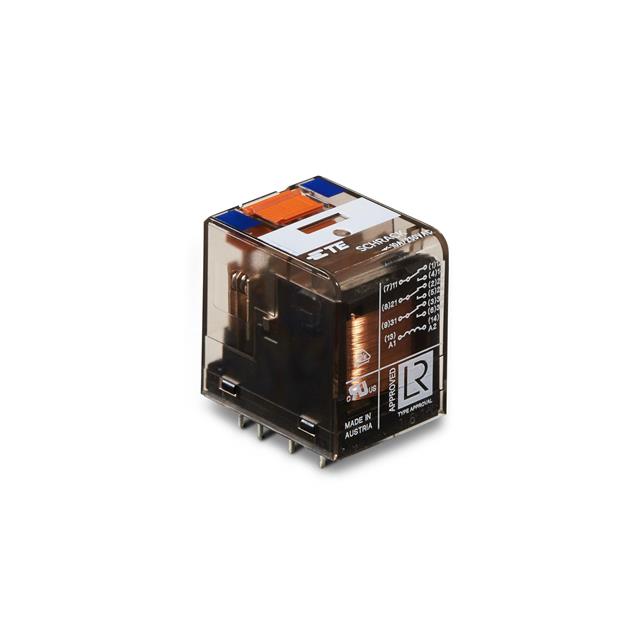

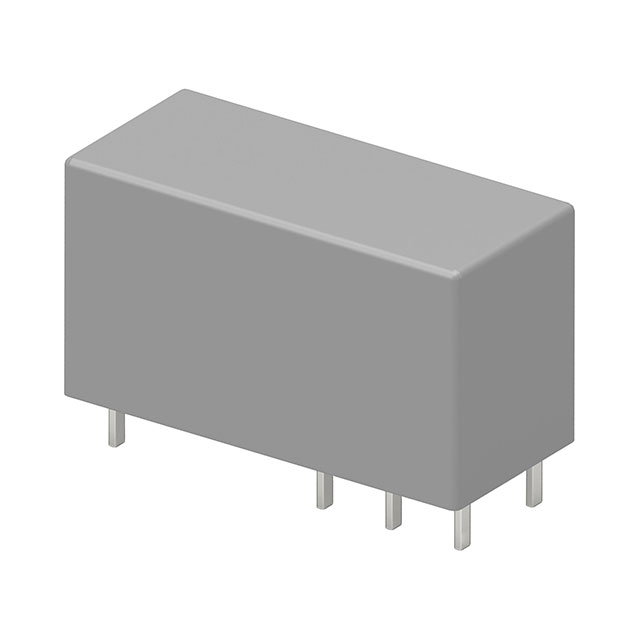

| Description | RELAY GEN PURPOSE SPDT 16A 24V | PT2L7RC4 | RELAY GEN PURPOSE DPDT 6A 24V | RELAY GEN PURPOSE 3PDT 10A 24V |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Packaging | Tube | Box | Bulk | Bulk |
