Product CatalogPart Number
90342
Manufacturer
Hartland Controls/LittelfuseDescription
RELAY GEN PURPOSE DPDT 15A 240V
Datasheet
DatasheetPackage
-
In Stock
60,165 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
90342
90342
lmages are for reference only.Payment Methods
Delivery Services
General Purpose Relay DPDT (2 Form C) 240VAC Coil Chassis Mount
Quick Inquiry
90342
Specifications
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | Hartland Controls/Littelfuse |
| Series | HCR-6 |
| Packaging | Box |
| RoHS Status | RoHS non-compliant |
| Mounting Type | Chassis Mount |
| Coil Voltage | 240VAC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 15 A |
| Switching Voltage | - |
| Load - Max Switching | - |
| Coil Current | - |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 176 VAC |
| Must Release Voltage | 48 VAC |
| Operate Time | - |
| Release Time | - |
| Operating Temperature | -40°C ~ 65°C |
| Contact Material | - |
| Approval Agency | - |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

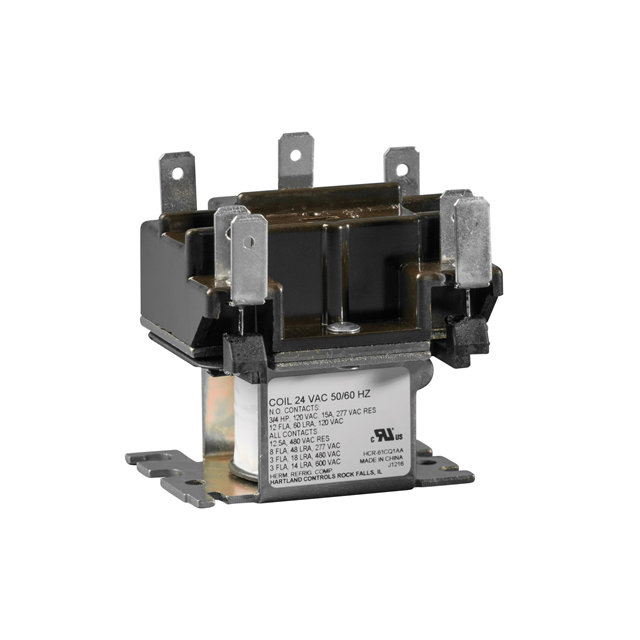

| Part Number | 90340 | 90341 | 90290 | 90291 |
| Manufacturer | Hartland Controls/Littelfuse | Hartland Controls/Littelfuse | Hartland Controls/Littelfuse | Hartland Controls/Littelfuse |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | RELAY GEN PURPOSE DPDT 15A 24V | RELAY GEN PURPOSE DPDT 15A 120V | RELAY GEN PURPOSE SPST 18A 24V | RELAY GEN PURPOSE SPST 18A 120V |
| Series | Hartland Controls/Littelfuse | Hartland Controls/Littelfuse | Hartland Controls/Littelfuse | Hartland Controls/Littelfuse |
| Packaging | Box | Box | Box | Box |
