Product CatalogPart Number
90HBW10PT
Manufacturer
Grayhill Inc.Description
SWITCH SLIDE DIP SPST 0.025A 24V
Datasheet
DatasheetPackage
-
In Stock
50,718 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
90HBW10PT
90HBW10PT
lmages are for reference only.Payment Methods
Delivery Services
Dip Switch SPST 10 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
Quick Inquiry
90HBW10PT
Specifications
| Category | Switches - DIP Switches - |
| Manufacturer | Grayhill Inc. |
| Series | 90HB |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Circuit | SPST |
| Number of Positions | 10 |
| Current Rating (Amps) | 25mA |
| Voltage Rating | 24VDC |
| Actuator Type | Slide (Standard) |
| Actuator Level | Flush, Recessed |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Height Above Board | 0.190" (4.83mm) |
| Mounting Type | Surface Mount |
| Termination Style | Gull Wing |
| Pitch | 0.100" (2.54mm), Full |
| Washable | Yes |
| Features | Tape Seal |
| Operating Temperature | -40°C ~ 85°C |
| Body Material | Thermoplastic |
| Length | 1.070" (27.18mm) |
| Mechanical Life | 2,000 Cycles |
| Electrical Life | 2,000 Cycles |
| Base Product Number | 90HBW10 |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
|
| Part Number | 90HBW10P | 90HBW10PRT | 90HBW10RT | 90HBW10T |
| Manufacturer | Grayhill Inc. | Grayhill Inc. | Grayhill Inc. | Grayhill Inc. |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SWITCH SLIDE DIP SPST 0.025A 24V | SWITCH SLIDE DIP SPST 0.025A 24V | SWITCH SLIDE DIP SPST 0.025A 24V | SWITCH SLIDE DIP SPST 0.025A 24V |
| Series | 90HB | 90HB | 90HB | 90HB |
| Packaging | Bag | Tape & Reel (TR) | Tape & Reel (TR) | Tube |
Customers Also Interested in
Recommended Products
90HBW02P
Grayhill Inc.
90HBW02PRT
Grayhill Inc.

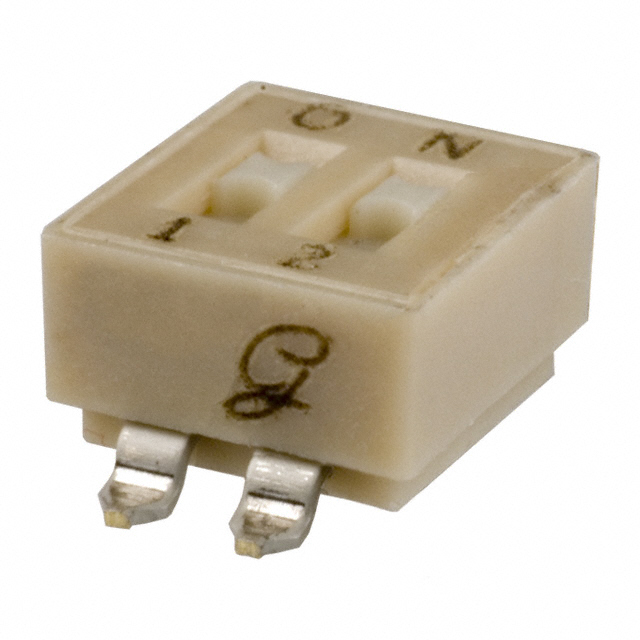

90HBW02PT
Grayhill Inc.
90HBW02RT
Grayhill Inc.
90HBW02T
Grayhill Inc.
90HBW03P
Grayhill Inc.
90HBW03PRT
Grayhill Inc.
90HBW03PT
Grayhill Inc.
90HBW03RT
Grayhill Inc.
90HBW04P
Grayhill Inc.
90HBW04PRT
Grayhill Inc.
90HBW04PT
Grayhill Inc.
90HBW04RT
Grayhill Inc.
90HBW04T
Grayhill Inc.

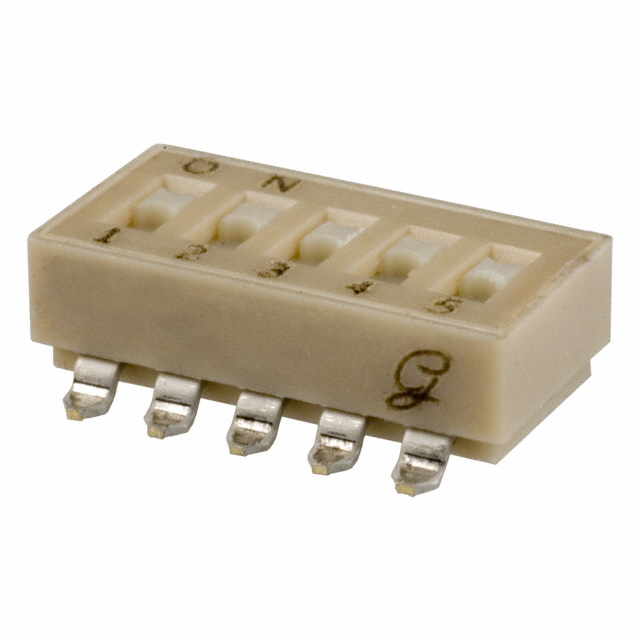

90HBW05P
