Product CatalogPart Number
926141-01-13-I
Manufacturer
3MDescription
CONN HEADER VERT 13POS 2.54MM
Datasheet
DatasheetPackage
-
In Stock
47,081 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
926141-01-13-I
926141-01-13-I
lmages are for reference only.Payment Methods
Delivery Services
Connector Header Through Hole 13 position 0.100" (2.54mm)
Quick Inquiry
926141-01-13-I
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | 3M |
| Series | 929 |
| Packaging | Bulk |
| RoHS Status | |
| Connector Type | Header, Breakaway |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 13 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.428" (10.87mm) |
| Contact Length - Post | 0.100" (2.54mm) |
| Overall Contact Length | 0.628" (15.95mm) |
| Insulation Height | 0.100" (2.54mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Gold |
| Contact Material | Copper Alloy |
| Insulation Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Features | - |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 2.5A |
| Voltage Rating | - |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | 10.0µin (0.25µm) |
| Applications | - |
| Base Product Number | 926141 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 926141-01-13-EU | 926141-01-10-EU | 926141-01-10-I | 926141-01-11-EU |
| Manufacturer | 3M | 3M | 3M | 3M |
| RoHS Status | ||||
| Description | CONN HEADER VERT 13POS 2.54MM | CONN HEADER VERT 10POS 2.54MM | CONN HEADER VERT 10POS 2.54MM | CONN HEADER VERT 11POS 2.54MM |
| Series | 929 | 929 | 929 | 929 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
Customers Also Interested in
Recommended Products

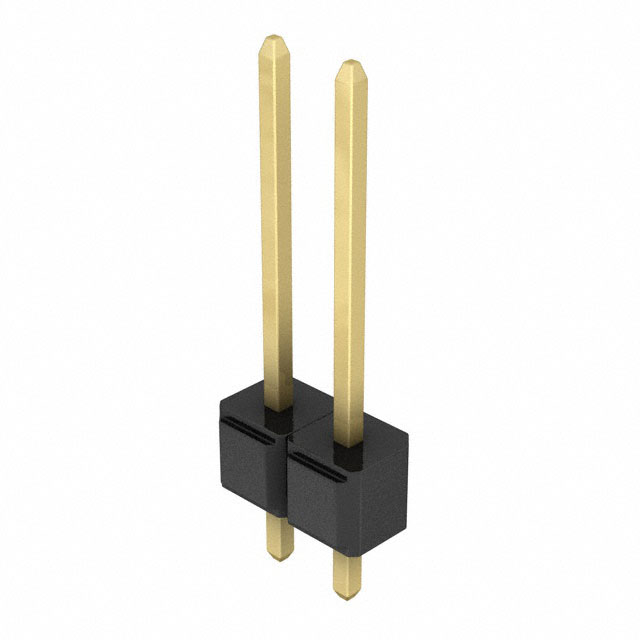

926141-01-02-EU
3M
926141-01-03-EU
3M

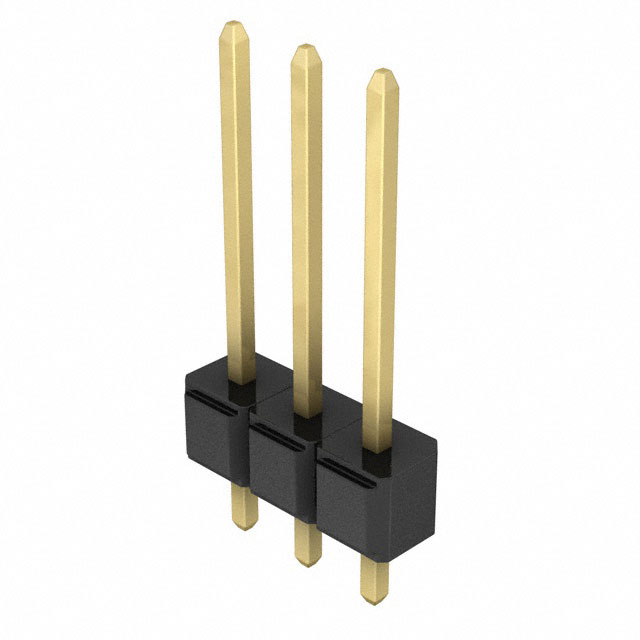

926141-01-03-I
3M

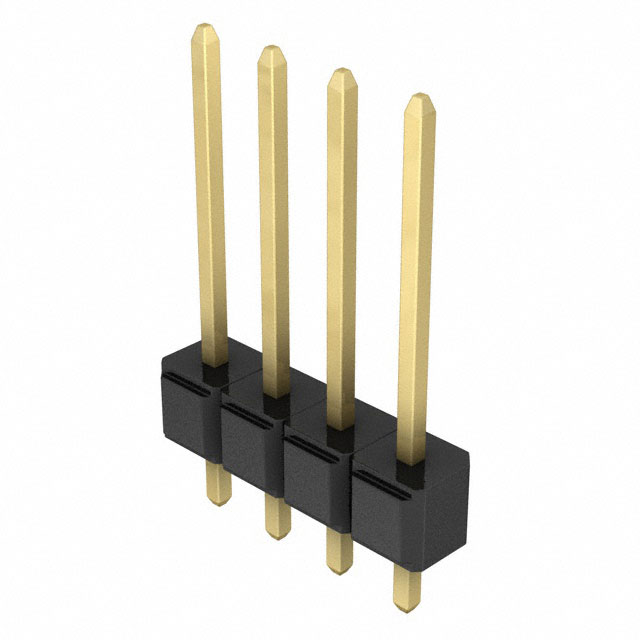

926141-01-04-EU
