9400-04Q1999

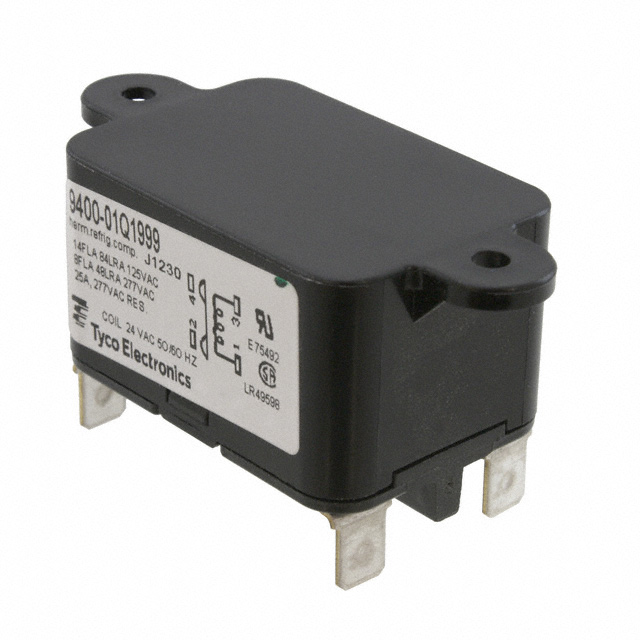

lmages are for reference only.9400-04Q1999
RELAY GEN PURPOSE SPDT 18A 24V
Datasheet-
99,018 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay SPDT (DB/DM) (1 Form Z) 24VAC Coil Chassis Mount
9400-04Q1999
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | 9400, Products Unlimited |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Chassis Mount |
| Coil Voltage | 24VAC |
| Contact Form | SPDT (DB/DM) (1 Form Z) |
| Contact Rating (Current) | 18 A |
| Switching Voltage | 277VAC - Max |
| Load - Max Switching | 4986VA |
| Coil Current | - |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Seal Rating | - |
| Coil Insulation | Class B |
| Must Operate Voltage | 20.4 VAC |
| Must Release Voltage | - |
| Operate Time | - |
| Release Time | - |
| Operating Temperature | -40°C ~ 65°C |
| Contact Material | Silver Alloy |
| Approval Agency | - |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | - |
| Base Product Number | 04Q1999 |
| Product Attribute |  |
 |
|
|
| Part Number | 9400-01Q1999 | 9400-01T1999 | 9400-01U1999 | 9400-03Q1999 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RELAY GEN PURPOSE SPST 25A 24V | RELAY GEN PURPOSE SPST 25A 120V | RELAY GEN PURPOSE SPST 25A 240V | RELAY GEN PURPOSE SPDT 18A 24V |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Packaging | Bulk | Bulk | Bulk | Bulk |
