94SVP106X0020B6

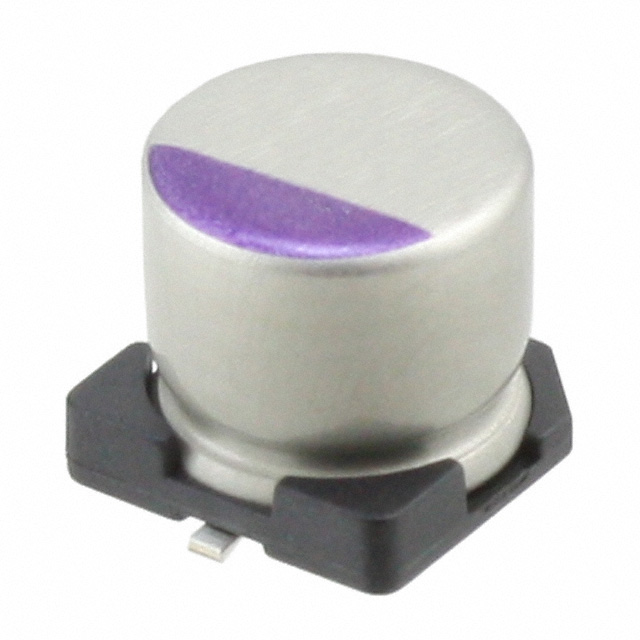

lmages are for reference only.94SVP106X0020B6
CAP ALUM POLY 10UF 20% 20V SMD
DatasheetRadial, Can - SMD
13,391 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10 µF 20 V Aluminum - Polymer Capacitors Radial, Can - SMD 170mOhm 1000 Hrs @ 105°C
94SVP106X0020B6
| Category | Capacitors - Aluminum Polymer Capacitors - |
| Manufacturer | Vishay Sprague |
| Series | 94SVP |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Polymer |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 20 V |
| ESR (Equivalent Series Resistance) | 170mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 850 mA @ 100 kHz |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Base Product Number | - |
| Features | - |
| Impedance | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | 94SVP106X0010A5 | 94SVP106X0025E7 | 94SVP107X0016F8 | 94SVP107X0020E12 |
| Manufacturer | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM POLY 10UF 20% 10V SMD | CAP ALUM POLY 10UF 20% 25V SMD | CAP ALUM POLY 100UF 20% 16V SMD | CAP ALUM POLY 100UF 20% 20V SMD |
| Series | 94SVP | 94SVP | 94SVP | 94SVP |
| Packaging | Tape & Reel (TR) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
