9806R5KL2.0
lmages are for reference only.9806R5KL2.0
SENSOR ROTARY 120DEG CONNECTOR
DatasheetBox with Connector
27,115 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Resistive Sensor Linear, Rotary Position Round Shaft Connector
9806R5KL2.0
| Category | Sensors, Transducers - Position Sensors - Angle-Linear Position Measuring |
| Manufacturer | Sensata-BEI Sensors |
| Series | 9806 |
| Packaging | Box |
| RoHS Status | RoHS Compliant |
| For Measuring | Linear, Rotary Position |
| Technology | Resistive |
| Rotation Angle - Electrical, Mechanical | 120° (±60°) |
| Linear Range | - |
| Output | Resistive |
| Output Signal | - |
| Actuator Type | Round Shaft |
| Linearity | ±2% |
| Resistance | - |
| Resistance Tolerance | ±20% |
| Voltage - Supply | - |
| Mounting Type | Chassis Mount |
| Termination Style | Connector |
| Operating Temperature | -40°C ~ 135°C |
| Package / Case | Box with Connector |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Base Product Number | 9806R5 |
| Product Attribute |  |  |  |  |

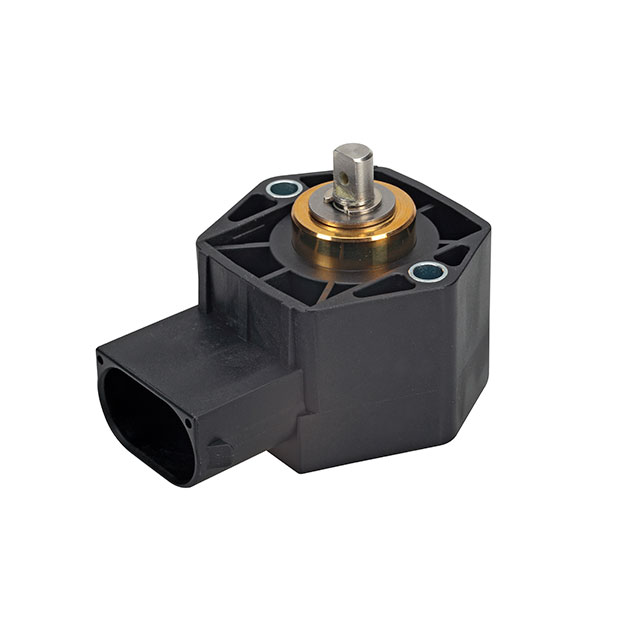

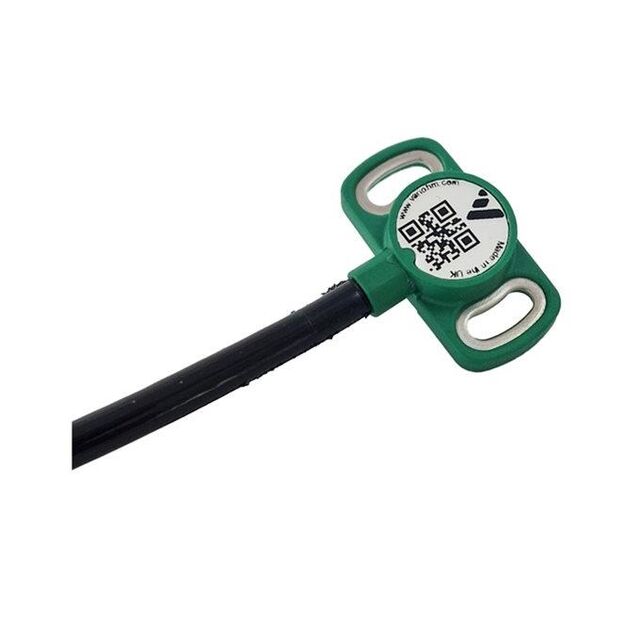

| Part Number | 9168100100 | 981HE0A3WA8H00 | 95535 | 95533 |
| Manufacturer | KYOCERA AVX | Vishay Spectrol | Variohm | Variohm |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | HALL-ANGLE-SENSOR 91681/TWO CHAN | THROTTLE POSITION SENSOR HALL | EURO-MXPK-A-112-1521-120-11-78-5 | EURO-MXPK-A-111-1521-060-1-7-50 |
| Series | - | * | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
