A-BL200EA27-028-GST1

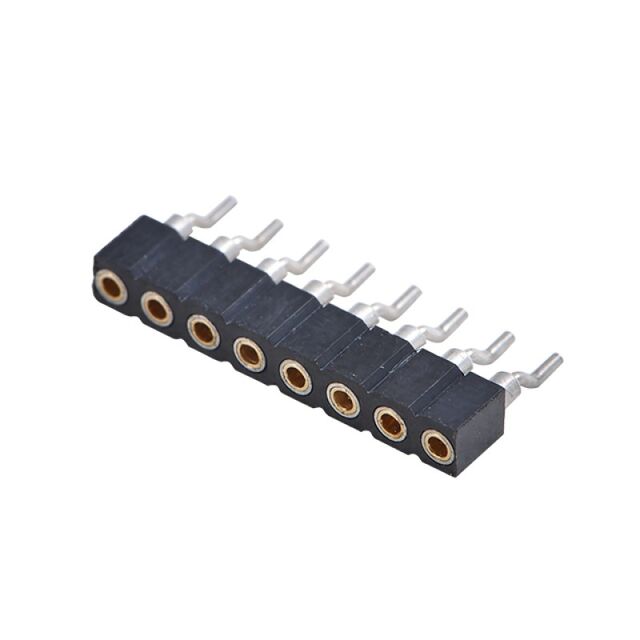

lmages are for reference only.A-BL200EA27-028-GST1
FEMALE HEADER, MACHINED PIN, 2.0
Datasheet-
15,311 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
27 Position Header Connector 0.079" (2.00mm) Surface Mount, Right Angle Gold
A-BL200EA27-028-GST1
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Receptacles-Female Sockets |
| Manufacturer | Assmann WSW Components |
| Series | A-BL200 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Header |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 27 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Insulation Color | Black |
| Insulation Height | 0.087" (2.20mm) |
| Contact Length - Post | - |
| Operating Temperature | -40°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | 3A per Contact |
| Voltage Rating | - |
| Applications | - |
| Insulation Material | Polyphenylene Sulfide (PPS) |
| Contact Shape | Circular |
| Contact Material | Beryllium Copper |
| Contact Finish Thickness - Post | 15.0µin (0.38µm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | A-BL200EA27-028-GSR1 | A-BL200EA20-028-GSR1 | A-BL200EA20-028-GST1 | A-BL200EA21-028-GSR1 |
| Manufacturer | Assmann WSW Components | Assmann WSW Components | Assmann WSW Components | Assmann WSW Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FEMALE HEADER, MACHINED PIN, 2.0 | FEMALE HEADER, MACHINED PIN, 2.0 | FEMALE HEADER, MACHINED PIN, 2.0 | FEMALE HEADER, MACHINED PIN, 2.0 |
| Series | Assmann WSW Components | Assmann WSW Components | Assmann WSW Components | Assmann WSW Components |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tube | Tape & Reel (TR) |
