Product CatalogPart Number
A-CCS 044-Z-T
Manufacturer
Assmann WSW ComponentsDescription
CONN SOCKET PLCC 44POS TIN
Datasheet
DatasheetPackage
-
In Stock
34,253 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
A-CCS 044-Z-T
A-CCS 044-Z-T
lmages are for reference only.Payment Methods
Delivery Services
44 (4 x 11) Pos PLCC Socket Tin Through Hole
Quick Inquiry
A-CCS 044-Z-T
Specifications
| Category | Connectors, Interconnects - Sockets for ICs-Transistors - IC Sockets |
| Manufacturer | Assmann WSW Components |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | PLCC |
| Number of Positions or Pins (Grid) | 44 (4 x 11) |
| Pitch - Mating | 0.050" (1.27mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 160.0µin (4.06µm) |
| Contact Material - Mating | Phosphor Bronze |
| Mounting Type | Through Hole |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - Post | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | 160.0µin (4.06µm) |
| Contact Material - Post | Phosphor Bronze |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Operating Temperature | -40°C ~ 105°C |
| Termination Post Length | 0.132" (3.35mm) |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 1 A |
| Contact Resistance | 15mOhm |
| Base Product Number | A-CCS 04 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | A-CCS 044-G-T | A-CCS 044-Z-SM | A-CCS 020-G-T | A-CCS 020-Z-SM |
| Manufacturer | Assmann WSW Components | Assmann WSW Components | Assmann WSW Components | Assmann WSW Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CONN SOCKET PLCC 44POS GOLD | IC SOCKET PLCC 44POS TIN SMD | CONN SOCKET PLCC 20POS GOLD | CONN SOCKET PLCC 20POS TIN |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
Customers Also Interested in
Recommended Products

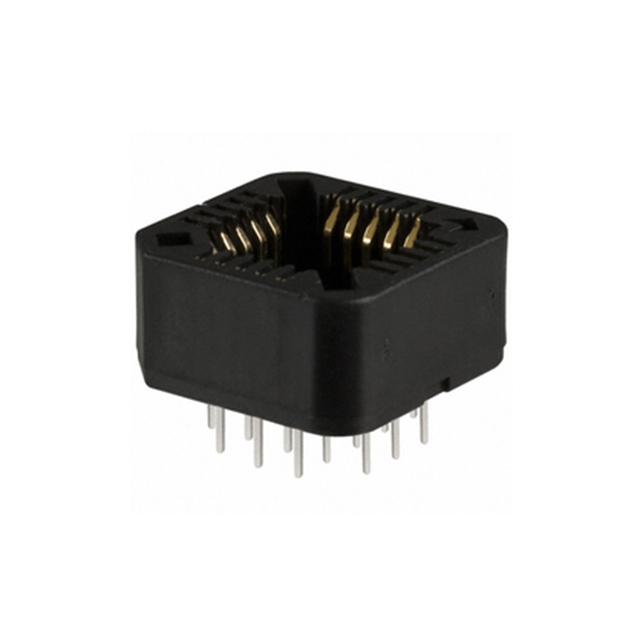

A-CCS 020-G-T
Assmann WSW Components

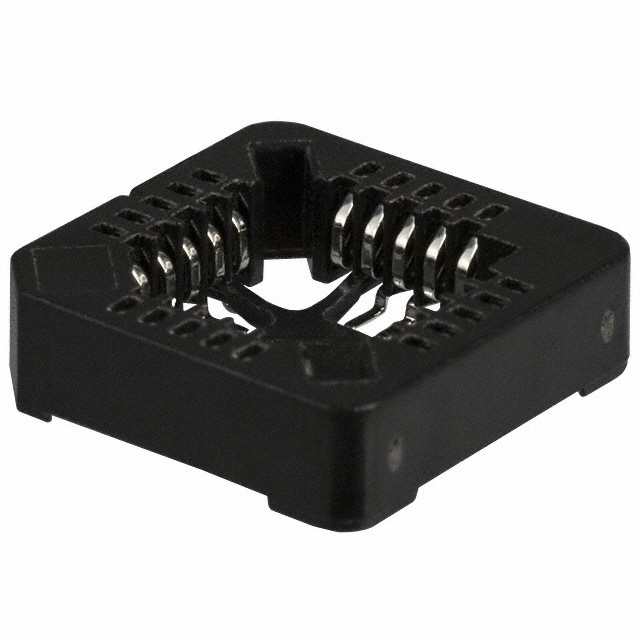

A-CCS 020-Z-SM
Assmann WSW Components

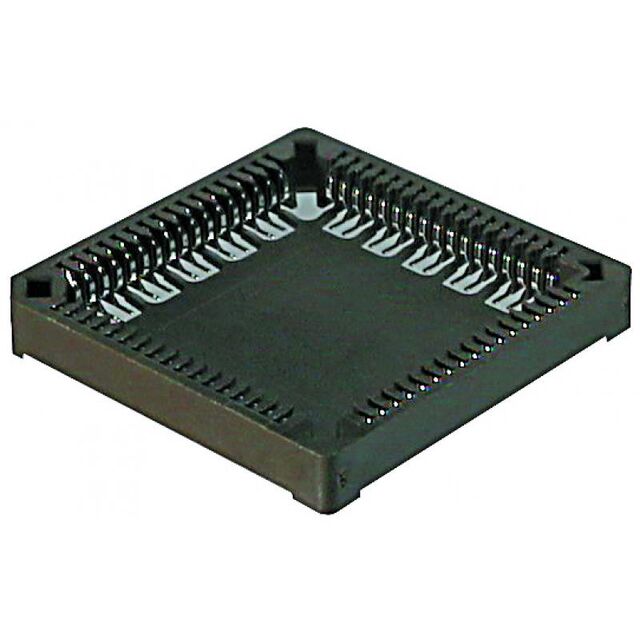

A-CCS 020-Z-SM/T
Assmann WSW Components

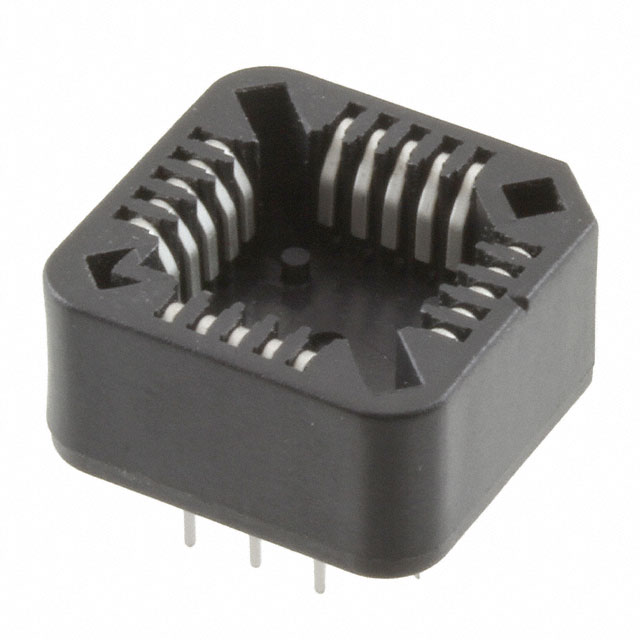

A-CCS 020-Z-T
Assmann WSW Components

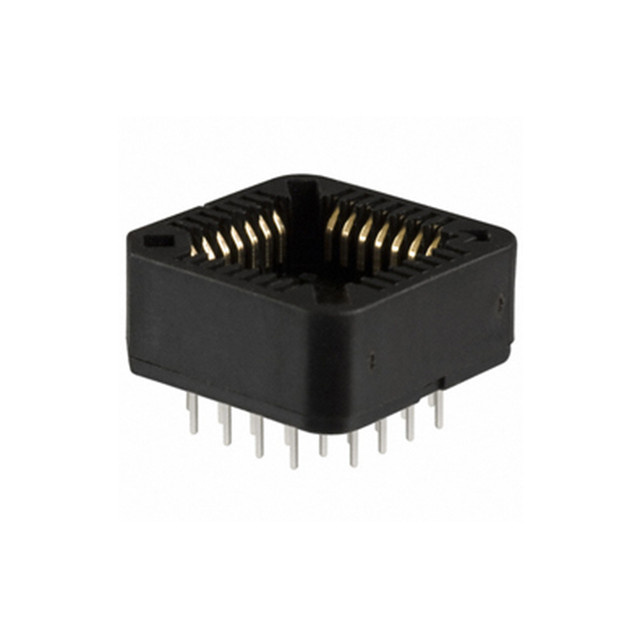

A-CCS 028-G-T
Assmann WSW Components

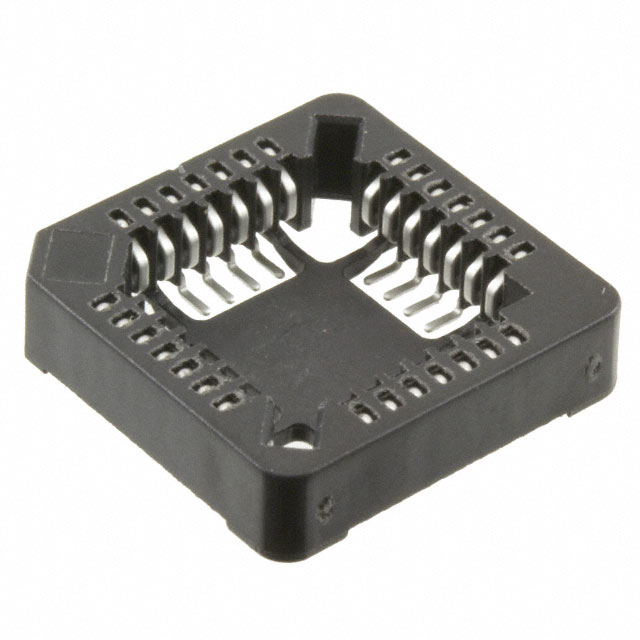

A-CCS 028-Z-SM
Assmann WSW Components
A-CCS 028-Z-SM/T
Assmann WSW Components

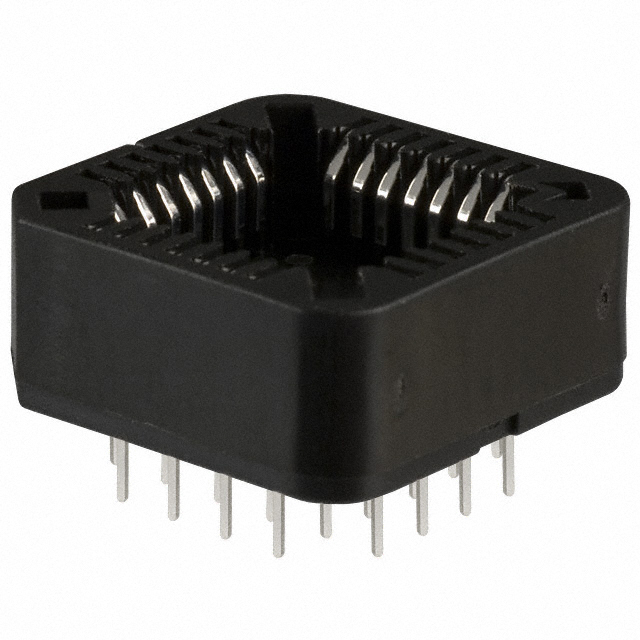

A-CCS 028-Z-T
Assmann WSW Components

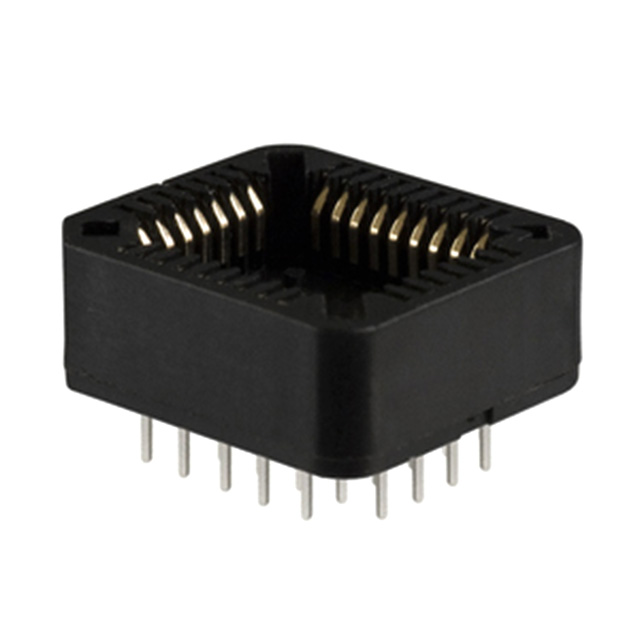

A-CCS 032-G-T
Assmann WSW Components

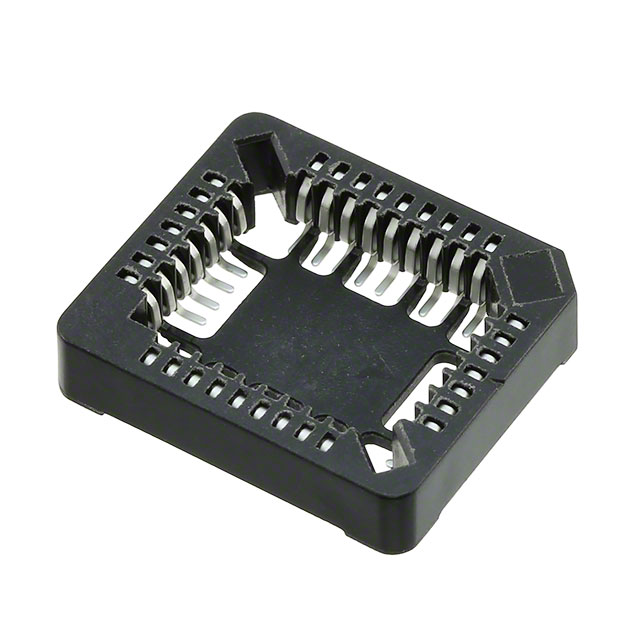

A-CCS 032-Z-SM
Assmann WSW Components
A-CCS 032-Z-SM/T
Assmann WSW Components

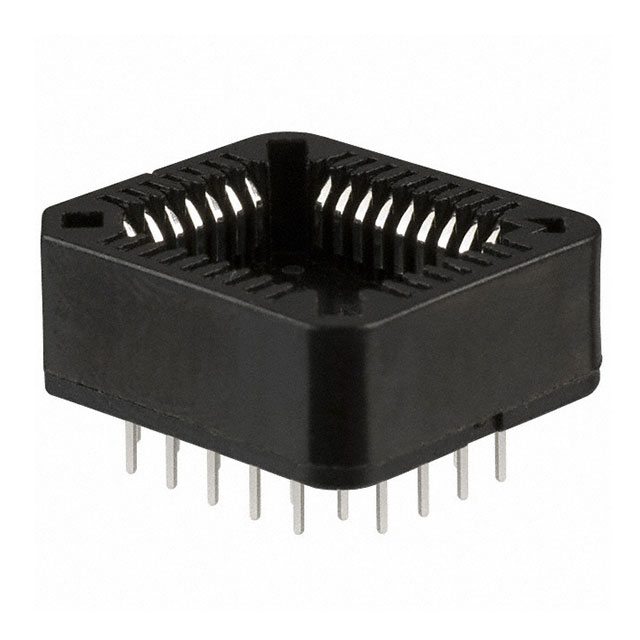

A-CCS 032-Z-T
Assmann WSW Components

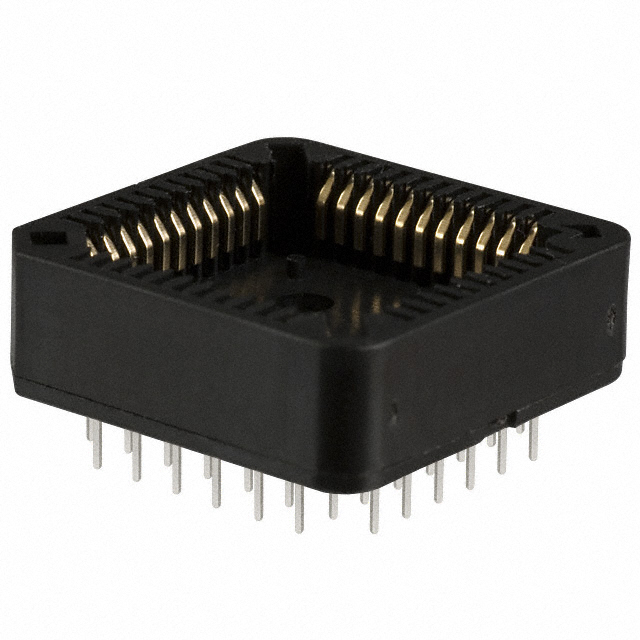

A-CCS 044-G-T
Assmann WSW Components

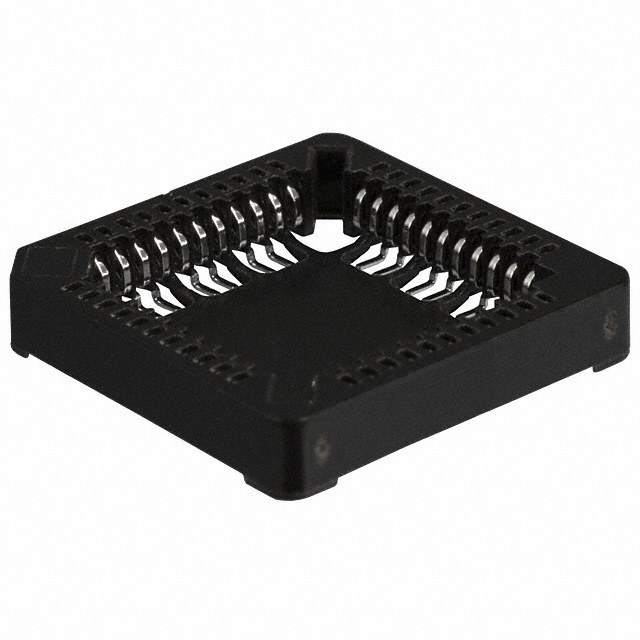

A-CCS 044-Z-SM
Assmann WSW Components
A-CCS 052-G-T
Assmann WSW Components
A-CCS 052-Z-SM
Assmann WSW Components

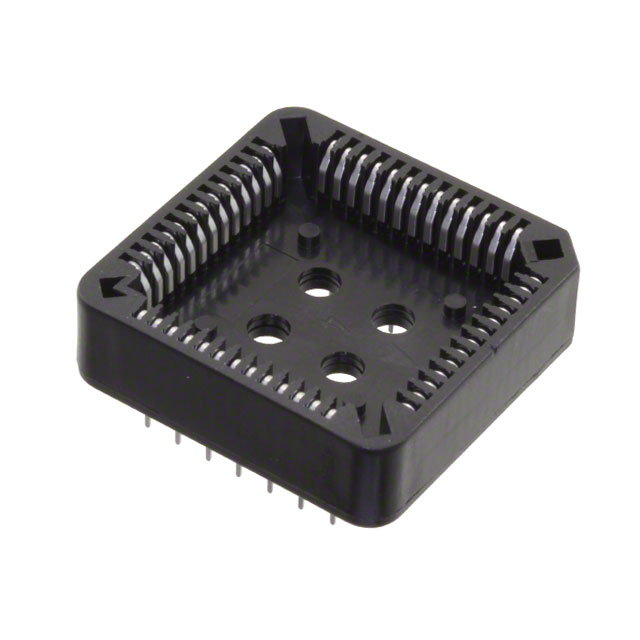

A-CCS 052-Z-T
Assmann WSW Components

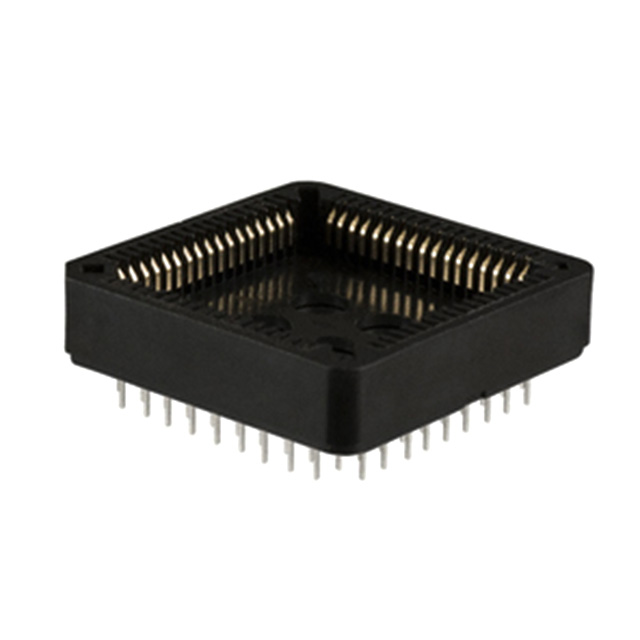

A-CCS 068-G-T
