A-USBC-32F1-EG-KSR06
lmages are for reference only.A-USBC-32F1-EG-KSR06
CONN RCPT USB3.2 TYPEC 24POS SMD
Datasheet-
60,332 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
USB-C (USB TYPE-C) USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Receptacle Connector 24 Position Surface Mount, Through Hole
A-USBC-32F1-EG-KSR06
| Category | Connectors, Interconnects - USB-DVI-HDMI Connectors - USB-DVI-HDMI Connector Assemblies |
| Manufacturer | Assmann WSW Components |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Connector Type | USB-C (USB TYPE-C) |
| Number of Contacts | 24 |
| Gender | Receptacle |
| Specifications | USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) |
| Mounting Type | Surface Mount, Through Hole |
| Mounting Feature | Vertical |
| Termination | Solder |
| Features | - |
| Ingress Protection | - |
| Operating Temperature | - |
| Number of Ports | 1 |
| Current Rating (Amps) | 3A |
| Voltage - Rated | - |
| Mating Cycles | 10000 |
| Shielding | Shielded |
| Contact Finish | Gold |
| Shell/Shielding Material | Steel (SUS304) |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

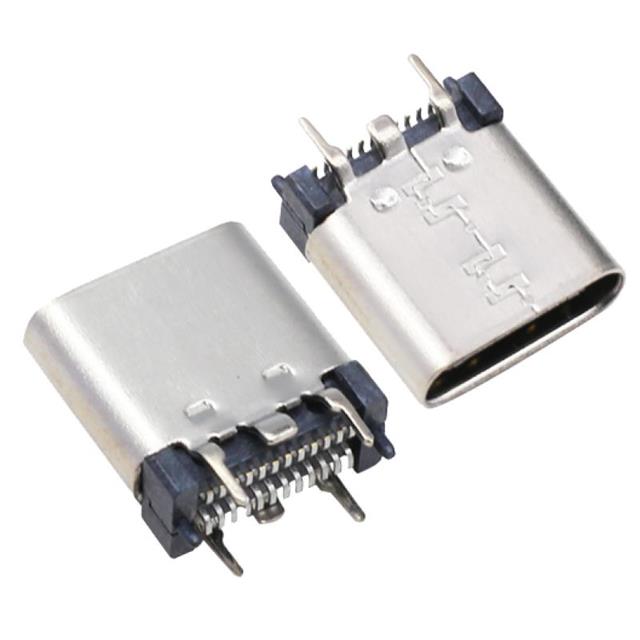

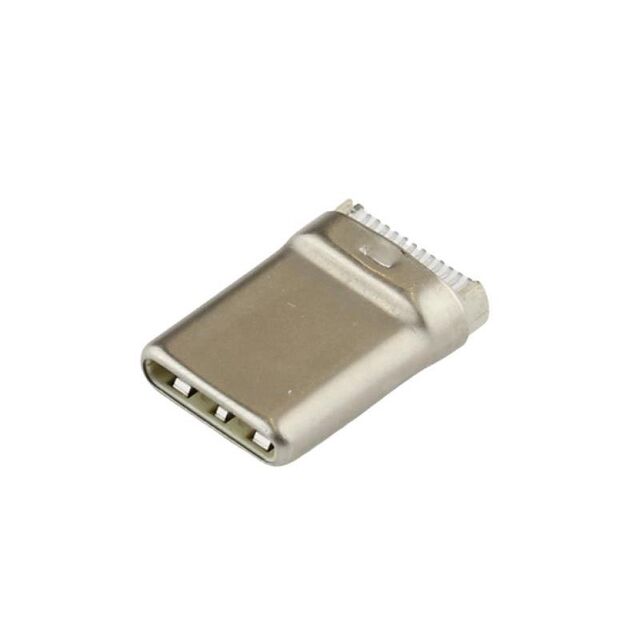

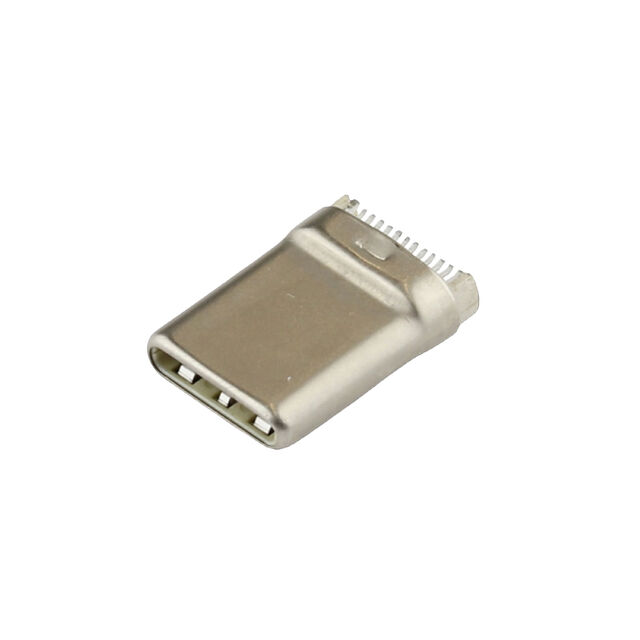

| Part Number | A-USBC-32F1-EG-KSR03 | A-USBC-32F1-EG-KST01 | A-USBC-32F1-EG-KST02 | A-USBC-32F1-EG-KST03 |
| Manufacturer | Assmann WSW Components | Assmann WSW Components | Assmann WSW Components | Assmann WSW Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CONN RCPT USB3.2 TYPEC 24POS SMD | CONN RCPT USB3.2 TYPEC 24POS SMD | CONN RCPT USB3.2 TYPEC 24POS SMD | USB TYPE C, USB 3.2 GEN1, FEMALE |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
