Product CatalogPart Number
A24001-016
Manufacturer
OmneticsDescription
CONN MALE R/A SMD 16POS
Datasheet
DatasheetPackage
-
In Stock
96,768 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
A24001-016
A24001-016
lmages are for reference only.Payment Methods
Delivery Services

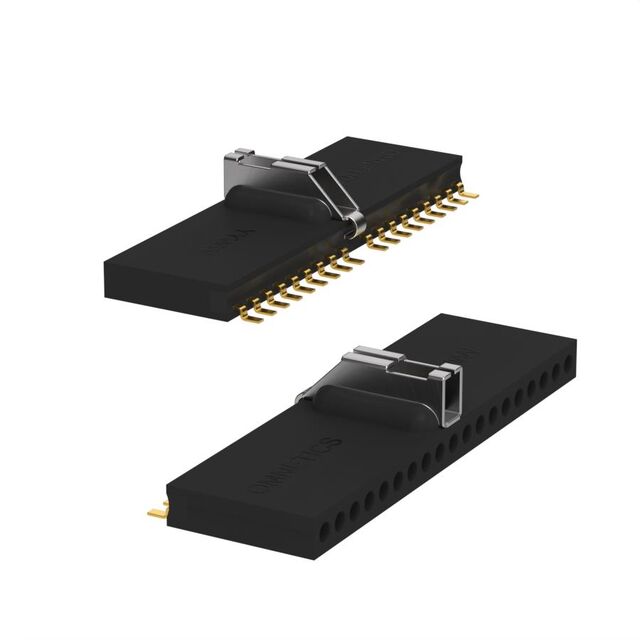

Connector Header Surface Mount, Right Angle 16 position 0.050" (1.27mm)
Quick Inquiry
A24001-016
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | Omnetics |
| Series | Micro Strip |
| Packaging | Case |
| RoHS Status | |
| Connector Type | Receptacle |
| Contact Type | Male Pin |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Positions | 16 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.075" (1.90mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 50.0µin (1.27µm) |
| Contact Finish - Post | - |
| Contact Material | Beryllium Copper |
| Insulation Material | Thermoplastic |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Natural |
| Current Rating (Amps) | 3A |
| Voltage Rating | - |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | - |
| Base Product Number | - |
