A3T-250
lmages are for reference only.A3T-250
FUSE CRTRDGE 250A 300VAC/125VDC
DatasheetCylindrical, Blade Terminal (Bolt)
60,435 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
250A 300 VAC 160 VDC Fuse Cartridge Bolt Mount
A3T-250
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Riedon products by Bourns |
| Series | A3T |
| Packaging | Bulk |
| RoHS Status | |
| Mounting Type | Bolt Mount |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 250A |
| Voltage Rating - AC | 300 VAC |
| Response Time | Fast Blow |
| Applications | Electrical, Industrial |
| Features | - |
| Class | T |
| Approval Agency | CSA, UL |
| Operating Temperature | - |
| Breaking Capacity @ Rated Voltage | 200kA AC, 50kA DC |
| Package / Case | Cylindrical, Blade Terminal (Bolt) |
| Size / Dimension | 1.331" Dia x 0.839" L (33.80mm x 21.30mm) |
| Base Product Number | - |
| Voltage Rating - DC | 160 VDC |
| Grade | - |
| Qualification | - |
| Melting I²t | - |
| DC Cold Resistance | - |
| Product Attribute |  |
 |
 |
 |

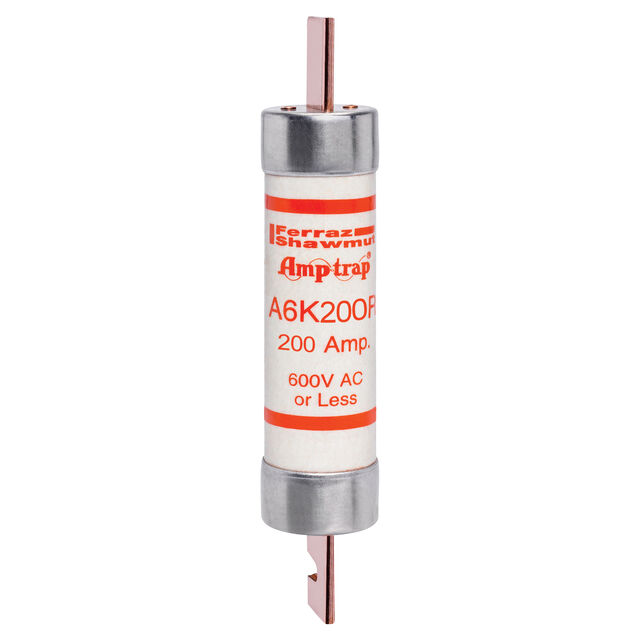

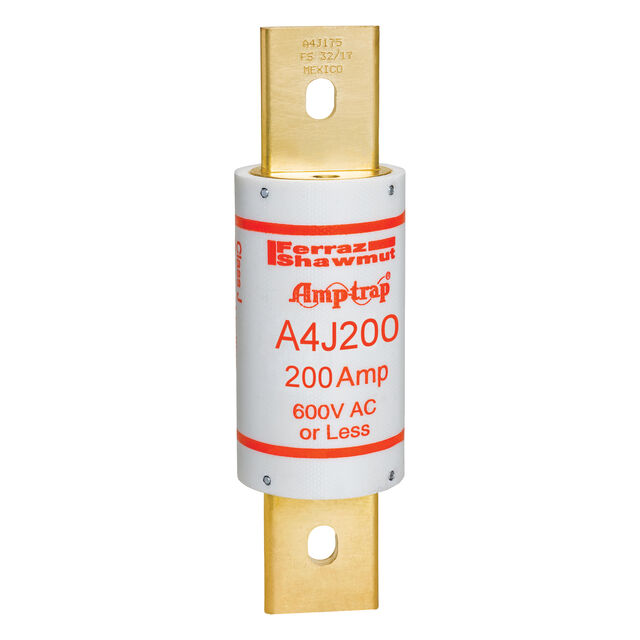

| Part Number | ATQR1/2 | A4J200 | A6K200R | ATQ15 |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CC TD FUSE 600V 1/2A ATQR | 600V 200A CLASS J FUSE | FUSE,FAST ACTING,CLASSRK1,REJECT | 500V 15A TD MIDGET FUSE |
| Series | ATQR | A4J | A6K-R | ATQ |
| Packaging | Box | Box | Box | Box |
