A4956KLPTR-T

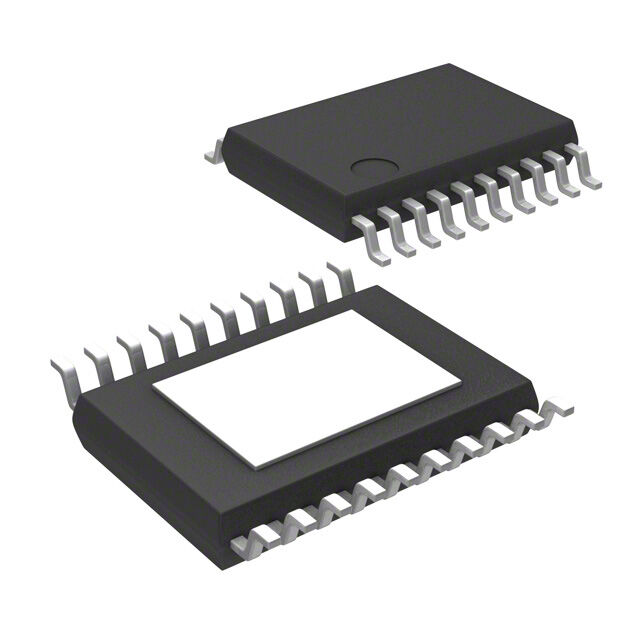

lmages are for reference only.A4956KLPTR-T
IC MOTOR DRIVER 5.5V-50V 20TSSOP
Datasheet20-TSSOP (0.173", 4.40mm Width) Exposed Pad
46,011 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Motor Driver NMOS Parallel 20-TSSOP-EP
A4956KLPTR-T
| Category | Integrated Circuits (ICs) - Power Management PMIC - Motor Drivers-Controllers |
| Manufacturer | Allegro MicroSystems |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC |
| Function | Controller - Commutation, Direction Management |
| Output Configuration | Pre-Driver - Half Bridge (2) |
| Interface | Parallel |
| Technology | NMOS |
| Step Resolution | - |
| Applications | General Purpose |
| Current - Output | - |
| Voltage - Supply | 5.5V ~ 50V |
| Voltage - Load | - |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 20-TSSOP-EP |
| Base Product Number | A4956 |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Product Attribute | |
 |
|
 |
| Part Number | A4956KLPTR-T | A4910KJPTR-T | A4910KJPTR-T | A4911KEVSR-J-1 |
| Manufacturer | Allegro MicroSystems | Allegro MicroSystems | Allegro MicroSystems | Allegro MicroSystems |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC MOTOR DRIVER 5.5V-50V 20TSSOP | IC MOTOR DRIVER 3V-5.5V 48LQFP | IC MOTOR DRIVER 3V-5.5V 48LQFP | IC MOTOR DRIVER MULTIPHASE 48QFN |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
