A4J20
lmages are for reference only.A4J20
600V 20A CLASS J FUSE
DatasheetCartridge, Non-Standard
46,716 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
20A 600 VAC 300 VDC Fuse Cartridge Requires Holder
A4J20
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. |
| Series | A4J20 |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Requires Holder |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 20A |
| Voltage Rating - AC | 600 VAC |
| Response Time | Fast Blow |
| Applications | Electrical, Industrial |
| Features | - |
| Class | J |
| Approval Agency | CSA, UL |
| Operating Temperature | - |
| Breaking Capacity @ Rated Voltage | 200kA AC, 100kA DC |
| Package / Case | Cartridge, Non-Standard |
| Size / Dimension | 0.827" Dia x 2.244" L (21.00mm x 57.00mm) |
| Base Product Number | - |
| Voltage Rating - DC | 300 VDC |
| Grade | - |
| Qualification | - |
| Melting I²t | - |
| DC Cold Resistance | - |
| Product Attribute |  |
 |
 |
 |

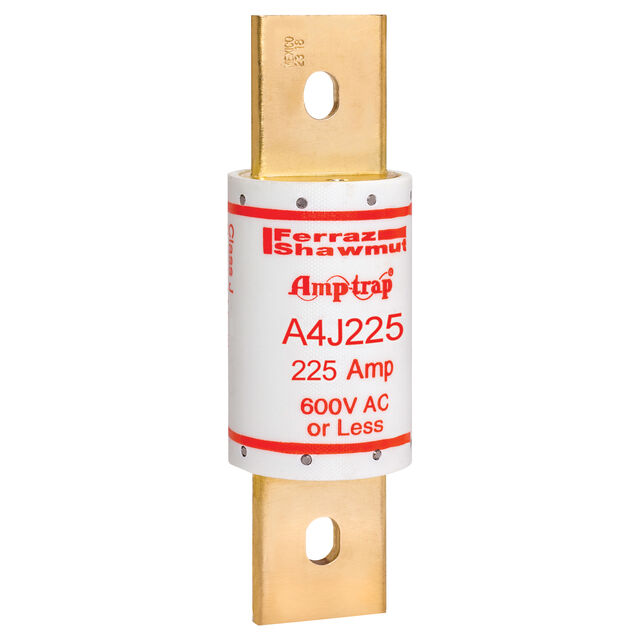

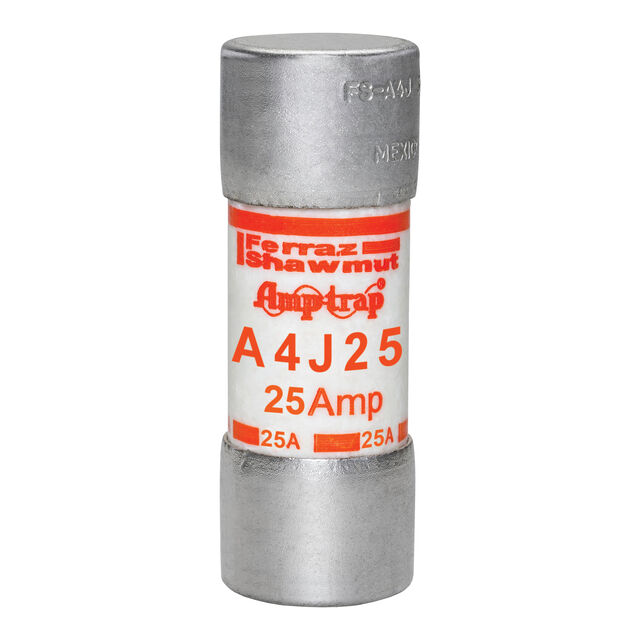

| Part Number | A4J200 | A4J225 | A4J25 | A4J250 |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 600V 200A CLASS J FUSE | FUSE,CLASS J,HIGH SPEED,200KA AC | FUSE,CLASS J,HIGH SPEED,200KA AC | FUSE,CLASS J,HIGH SPEED,200KA AC |
| Series | A4J | A4J | A4J25 | A4J |
| Packaging | Box | Box | Box | Box |
