.jpg "A6H-0101(VNM)")
A6H-0101(VNM)
lmages are for reference only.A6H-0101(VNM)
SWITCH SLIDE DIP SPST 0.025A 24V
Datasheet-
66,630 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Dip Switch SPST 10 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
A6H-0101(VNM)
| Category | Switches - DIP Switches - |
| Manufacturer | Omron Electronics Inc-EMC Div |
| Series | A6H |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Circuit | SPST |
| Number of Positions | 10 |
| Current Rating (Amps) | 25mA |
| Voltage Rating | 24VDC |
| Actuator Type | Slide (Standard) |
| Actuator Level | Flush, Recessed |
| Contact Material | - |
| Contact Finish | - |
| Height Above Board | 0.061" (1.55mm) |
| Mounting Type | Surface Mount |
| Termination Style | Gull Wing |
| Pitch | 0.050" (1.27mm), Half |
| Washable | No |
| Features | - |
| Operating Temperature | -20°C ~ 70°C |
| Body Material | - |
| Length | 0.548" (13.93mm) |
| Mechanical Life | 1,000 Cycles |
| Electrical Life | 1,000 Cycles |
| Base Product Number | A6H |
| Product Attribute | .jpg "A6H-0101-R100(VNM)") |

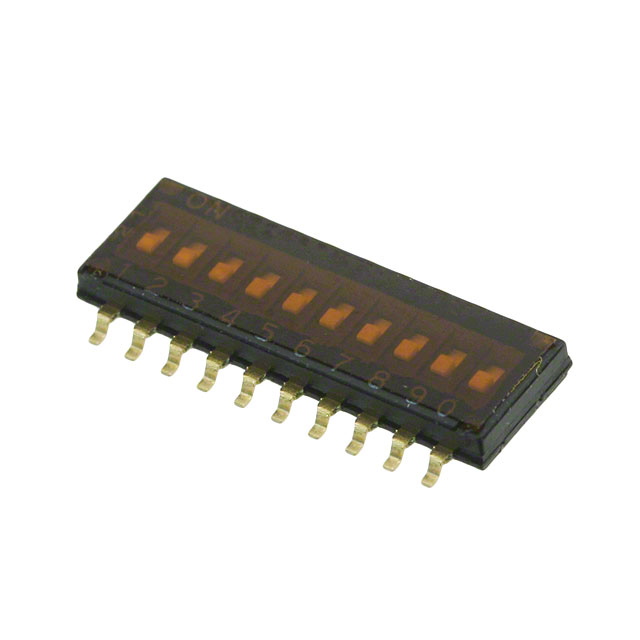

.jpg "A6H-0102(VNM)") |
 |

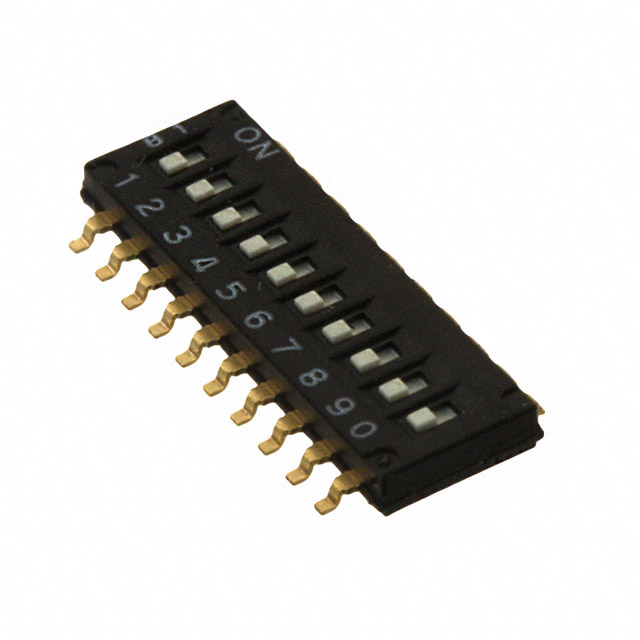

.jpg "A6H-0102-R100(VNM)") |
| Part Number | A6H-0101-R100(VNM) | A6H-0102(VNM) | A6H-0102-PM | A6H-0102-R100(VNM) |
| Manufacturer | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | |
| Description | SWITCH SLIDE DIP SPST 0.025A 24V | SWITCH SLIDE DIP SPST 0.025A 24V | DIP SWITCH | SWITCH SLIDE DIP SPST 0.025A 24V |
| Series | A6H | A6H | A6H | A6H |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Bulk | Tape & Reel (TR)-->Cut Tape (CT) |
