A6SN-3102-R100

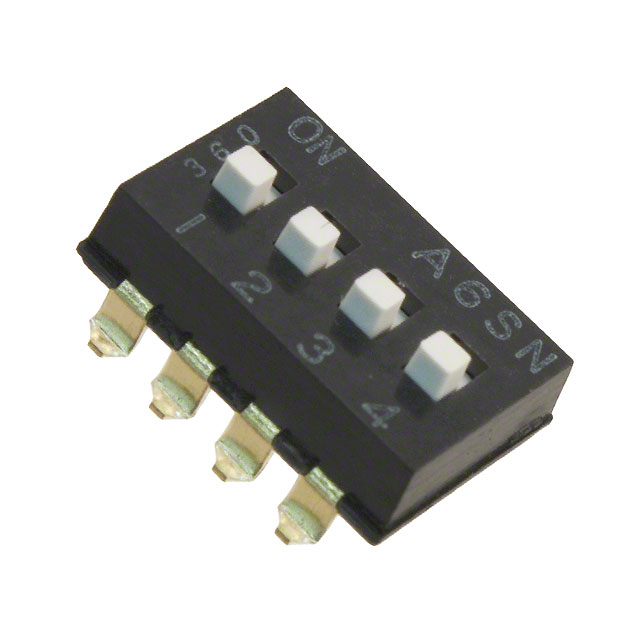

lmages are for reference only.A6SN-3102-R100
SWITCH SLIDE DIP SPST 0.025A 24V
Datasheet-
71,121 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Dip Switch SPST 3 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
A6SN-3102-R100
| Category | Switches - DIP Switches - |
| Manufacturer | Omron Electronics Inc-EMC Div |
| Series | A6SN |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Circuit | SPST |
| Number of Positions | 3 |
| Current Rating (Amps) | 25mA |
| Voltage Rating | 24VDC |
| Actuator Type | Slide (Standard) |
| Actuator Level | Flush, Recessed |
| Contact Material | - |
| Contact Finish | - |
| Height Above Board | 0.175" (4.45mm) |
| Mounting Type | Surface Mount |
| Termination Style | Gull Wing |
| Pitch | 0.100" (2.54mm), Full |
| Washable | Yes |
| Features | Tape Seal |
| Operating Temperature | -30°C ~ 85°C |
| Body Material | - |
| Length | 0.376" (9.55mm) |
| Mechanical Life | - |
| Electrical Life | 1,000 Cycles |
| Base Product Number | A6SN |
| Product Attribute |  |
 |
 |
 |
| Part Number | A6SN-3101 | A6SN-3101-P | A6SN-3104 | A6SN-3104-P |
| Manufacturer | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | SWITCH SLIDE DIP SPST 0.025A 24V | SWITCH SLIDE DIP SPST 0.025A 24V | SWITCH SLIDE DIP SPST 0.025A 24V | SWITCH SLIDE DIP SPST 0.025A 24V |
| Series | A6SN | A6SN | A6SN | A6SN |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
