.jpg "A6T-4101(VNM)")
A6T-4101(VNM)
lmages are for reference only.A6T-4101(VNM)
SWITCH SLIDE DIP SPST 0.025A 24V
Datasheet-
38,209 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Dip Switch SPST 4 Position Through Hole Slide (Standard) Actuator 25mA 24VDC
A6T-4101(VNM)
| Category | Switches - DIP Switches - |
| Manufacturer | Omron Electronics Inc-EMC Div |
| Series | A6T |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Circuit | SPST |
| Number of Positions | 4 |
| Current Rating (Amps) | 25mA |
| Voltage Rating | 24VDC |
| Actuator Type | Slide (Standard) |
| Actuator Level | Flush, Recessed |
| Contact Material | - |
| Contact Finish | - |
| Height Above Board | 0.142" (3.60mm) |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Pitch | 0.100" (2.54mm), Full |
| Washable | No |
| Features | - |
| Operating Temperature | -20°C ~ 70°C |
| Body Material | - |
| Length | 0.437" (11.10mm) |
| Mechanical Life | 1,000 Cycles |
| Electrical Life | 1,000 Cycles |
| Base Product Number | A6T |

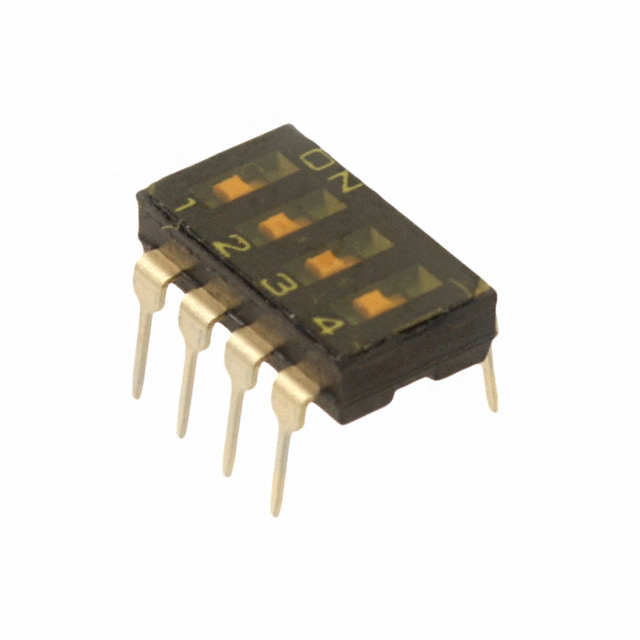

| Product Attribute | .jpg "A6T-4102(VNM)") |

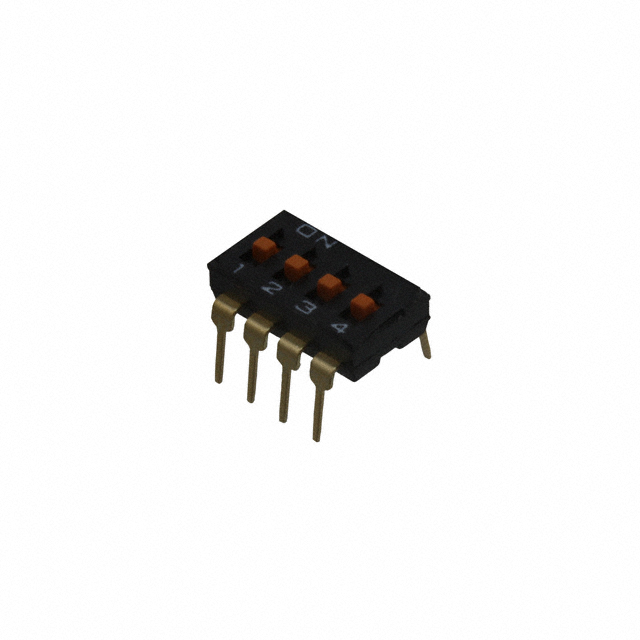

.jpg "A6T-4104(VNM)") |
.jpg "A6T 5104(VNM)") |
.jpg "A6T-0101(VNM)") |
| Part Number | A6T-4102(VNM) | A6T-4104(VNM) | A6T 5104(VNM) | A6T-0101(VNM) |
| Manufacturer | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | RoHS Compliant | RoHS Compliant |
| Description | SWITCH SLIDE DIP SPST 0.025A 24V | SWITCH SLIDE DIP SPST 0.025A 24V | SWITCH SLIDE DIP SPST 0.025A 24V | SWITCH SLIDE DIP SPST 0.025A 24V |
| Series | A6T | A6T | A6T | A6T |
| Packaging | Tube | Tube | Tube | Tray |
