A70QS60-4
lmages are for reference only.A70QS60-4
FUSE,HIGH SPEED,NO BLOWN INDICAT
DatasheetCylindrical, Blade Terminal (Bolt)
70,078 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
60A 700 VAC 700 VDC Fuse Cartridge Bolt Mount
A70QS60-4
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. |
| Series | A70QS |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Bolt Mount |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 60A |
| Voltage Rating - AC | 700 VAC |
| Response Time | Fast Blow |
| Applications | Motor Protection |
| Features | - |
| Class | - |
| Approval Agency | CSA, UL |
| Operating Temperature | - |
| Breaking Capacity @ Rated Voltage | 200kA AC, 100kA DC |
| Package / Case | Cylindrical, Blade Terminal (Bolt) |
| Size / Dimension | 1.000" Dia x 4.370" L (25.40mm x 111.00mm) |
| Base Product Number | - |
| Voltage Rating - DC | 700 VDC |
| Grade | - |
| Qualification | - |
| Melting I²t | - |
| DC Cold Resistance | - |
| Product Attribute |  |
 |
 |
 |

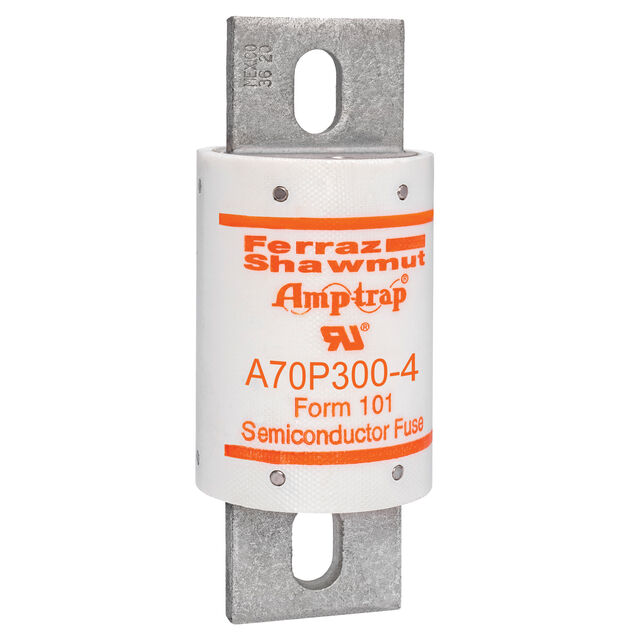

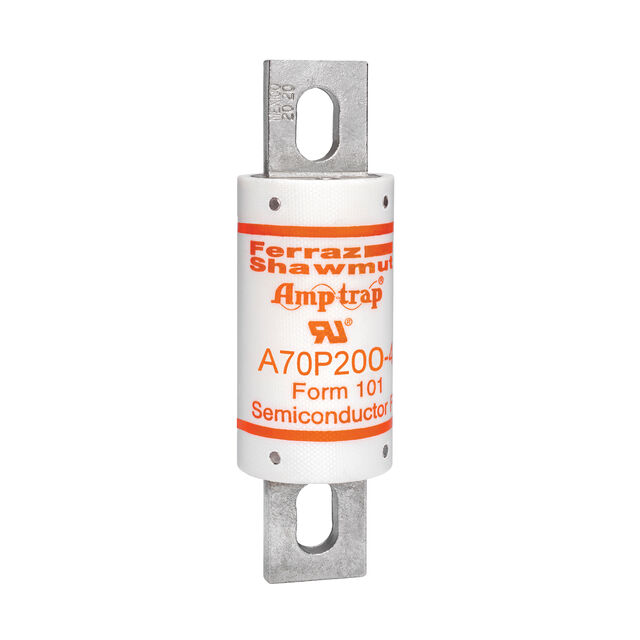

| Part Number | A70P150-4 | A70P200-4 | A70P30-1 | A70P300-4 |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | SC FUSE 700V 150A P BLADE | SC FUSE 700V 200A P BLADE | SC FUSE 700V 30A P FERRULE | SC FUSE 700V 300A P BLADE |
| Series | A70P | A70P | A70P | A70P |
| Packaging | Box | Box | Box | Box |
