A8503GECTR-T

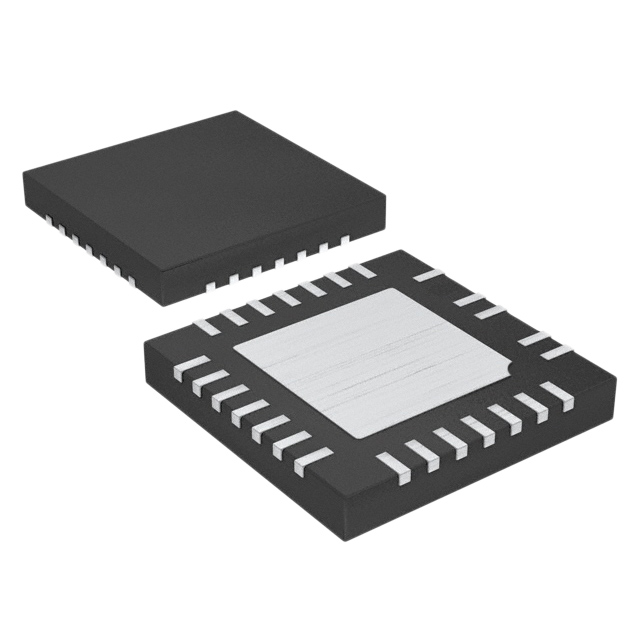

lmages are for reference only.A8503GECTR-T
IC LED DRVR RGLTR PWM 32MA 26QFN
Datasheet26-WFQFN Exposed Pad
51,696 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
LED Driver IC 6 Output DC DC Regulator Step-Up (Boost) PWM Dimming 32mA 26-QFN/MLP (4x4)
A8503GECTR-T
| Category | Integrated Circuits (ICs) - Power Management PMIC - LED Drivers |
| Manufacturer | Allegro MicroSystems |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | DC DC Regulator |
| Topology | Step-Up (Boost) |
| Internal Switch(s) | Yes |
| Number of Outputs | 6 |
| Voltage - Supply (Min) | 4.2V |
| Voltage - Supply (Max) | 5.5V |
| Voltage - Output | - |
| Current - Output / Channel | 32mA |
| Frequency | 2MHz |
| Dimming | PWM |
| Applications | Backlight |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 26-WFQFN Exposed Pad |
| Supplier Device Package | 26-QFN/MLP (4x4) |
| Base Product Number | A8503 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | A80601KESJSR | A80601KESJSR-1 | A80602KESJSR | A80602KESJSR-1 |
| Manufacturer | Allegro MicroSystems | Allegro MicroSystems | Allegro MicroSystems | Allegro MicroSystems |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC LED DRVR CTRL PWM 210MA 24QFN | IC LED DRVR CTRL PWM 210MA 24QFN | IC LED DRVR CTRL PWM 140MA 24QFN | IC LED DRVR CTRL PWM 140MA 24QFN |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
