A89500GEJTR-T
lmages are for reference only.A89500GEJTR-T
IC GATE DRVR HALF-BRIDGE 10DFN
Datasheet10-WFDFN Exposed Pad
57,424 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Half-Bridge Gate Driver IC Non-Inverting 10-DFN (3x3)
A89500GEJTR-T
| Category | Integrated Circuits (ICs) - Power Management PMIC - Gate Drivers |
| Manufacturer | Allegro MicroSystems |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Driven Configuration | Half-Bridge |
| Channel Type | Single |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 8V ~ 15V |
| Logic Voltage - VIL, VIH | 1V, 2V |
| Current - Peak Output (Source, Sink) | 2.7A, 2.7A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 100 V |
| Rise / Fall Time (Typ) | 105ns, 46ns |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount, Wettable Flank |
| Package / Case | 10-WFDFN Exposed Pad |
| Supplier Device Package | 10-DFN (3x3) |
| Base Product Number | A89500 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | A89500KEJSR | A89503KLPTR-3 | A89503KLPTR-5 | A89505KLPTR |
| Manufacturer | Allegro MicroSystems | Allegro MicroSystems | Allegro MicroSystems | Allegro MicroSystems |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

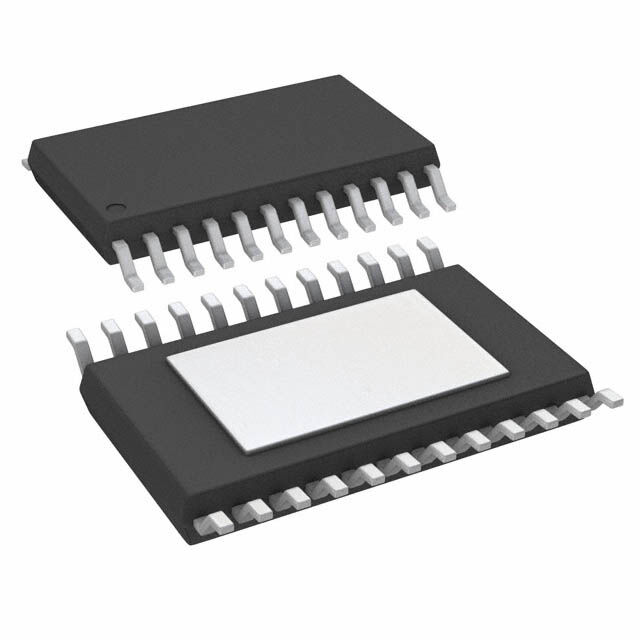

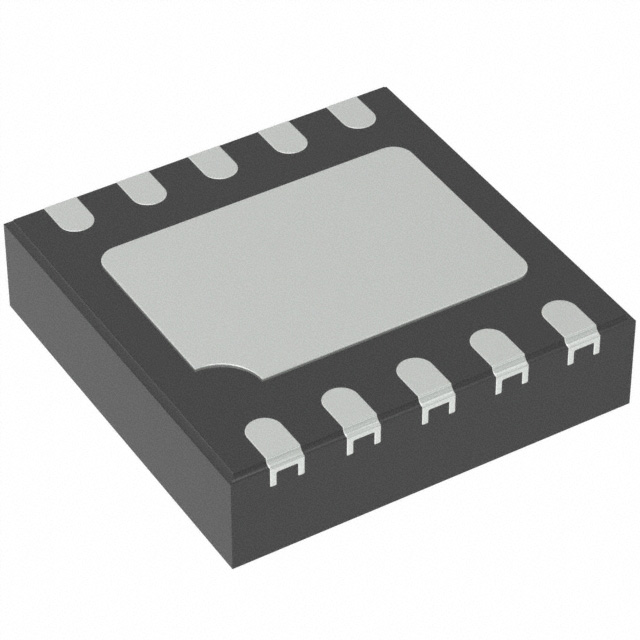

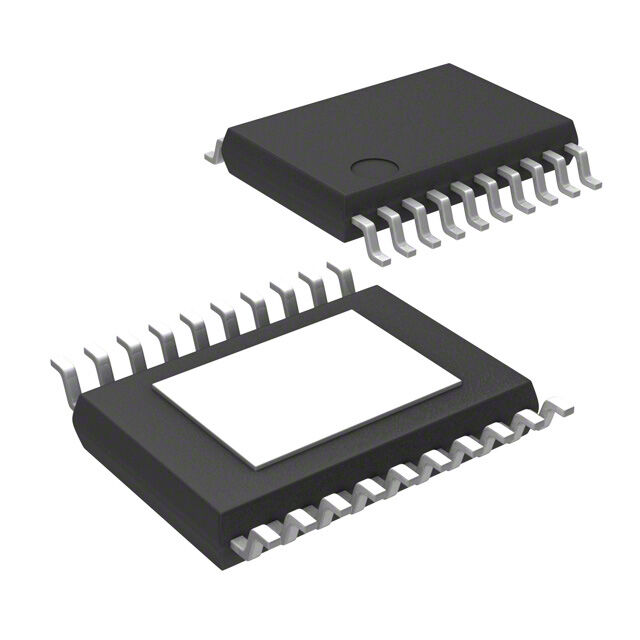

| Description | IC GATE DRVR HALF-BRIDGE 10DFN | IC GATE DRVR HALF-BRIDGE 24TSSOP | IC GATE DRVR HALF-BRIDGE 24TSSOP | IC GATE DRVR FULL-BRIDGE 20TSSOP |
| Series | - | - | - | - |
| Packaging | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
