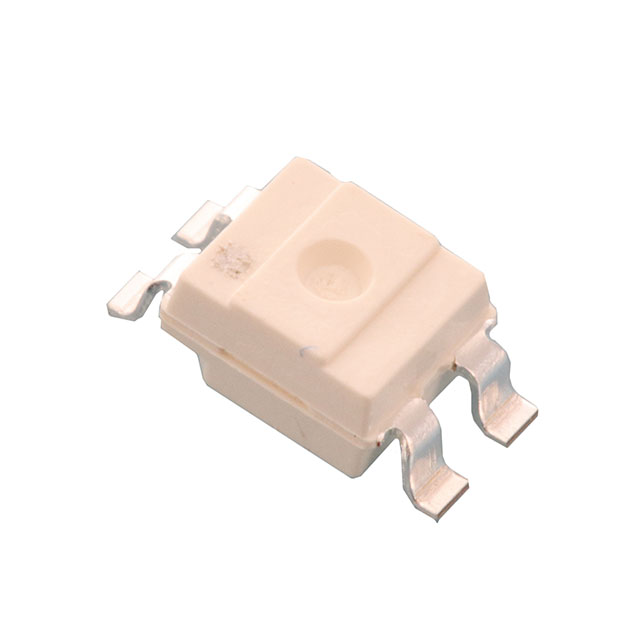

AAA3528SURKCGKC09
lmages are for reference only.AAA3528SURKCGKC09
LED GRN/RED CLEAR SMD BOTTOM ENT
Datasheet4-SMD, Gull Wing
19,330 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Green, Red 570nm Green, 630nm Red LED Indication - Discrete 2.1V Green, 1.95V Red 4-SMD, Gull Wing
AAA3528SURKCGKC09
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Kingbright |
| Series | Heli-R |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Green, Red |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 80mcd Green, 100mcd Red |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 1.95V Red |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount, Bottom Entry |
| Wavelength - Dominant | 570nm Green, 630nm Red |
| Wavelength - Peak | 574nm Green, 645nm Red |
| Features | - |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | SMD |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Height (Max) | 2.10mm |
| Base Product Number | AAA3528 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

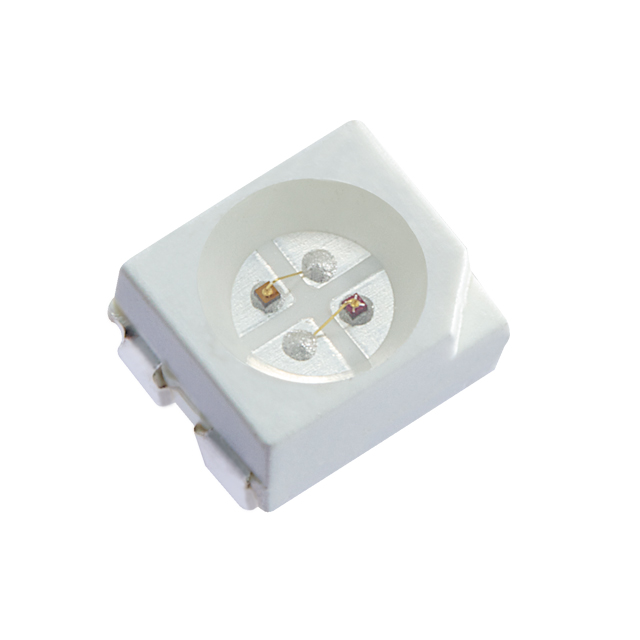

| Part Number | AAA3528SURKCGKC | AAA3528SURKCGKCT | AAA3528SURKCGKS | AAA3528SURKSYKC |
| Manufacturer | Kingbright | Kingbright | Kingbright | Kingbright |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED GREEN/RED CLEAR 4SMD | LED GREEN/RED CLEAR 4SMD | LED GREEN/RED CLEAR 4SMD | LED RED/YLW CLEAR 4SMD |
| Series | Kingbright | Kingbright | Kingbright | Kingbright |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
