Product CatalogPart Number
AAAF5051-04
Manufacturer
KingbrightDescription
LED RGB CLEAR SMD
Datasheet
DatasheetPackage
6-SMD, Gull Wing
In Stock
21,372 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
AAAF5051-04
AAAF5051-04
lmages are for reference only.Payment Methods
Delivery Services
Red, Green, Blue (RGB) 624nm Red, 525nm Green, 460nm Blue LED Indication - Discrete 2.5V Red, 3.5V Green, 3.5V Blue 6-SMD, Gull Wing
Quick Inquiry
AAAF5051-04
Specifications
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Kingbright |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 3200mcd Red, 6300mcd Green, 1500mcd Blue |
| Lens Style | Square with Flat Top |
| Lens Size | 4.25mm |
| Voltage - Forward (Vf) (Typ) | 2.5V Red, 3.5V Green, 3.5V Blue |
| Current - Test | 150mA Red, 150mA Green, 150mA Blue |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 624nm Red, 525nm Green, 460nm Blue |
| Wavelength - Peak | 635nm Red, 515nm Green, 452nm Blue |
| Features | - |
| Package / Case | 6-SMD, Gull Wing |
| Supplier Device Package | SMD |
| Size / Dimension | 5.00mm L x 5.00mm W |
| Height (Max) | 1.30mm |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

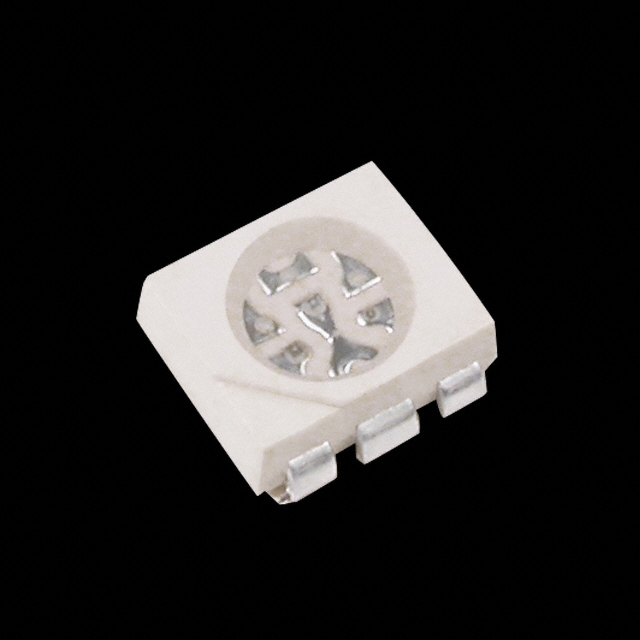

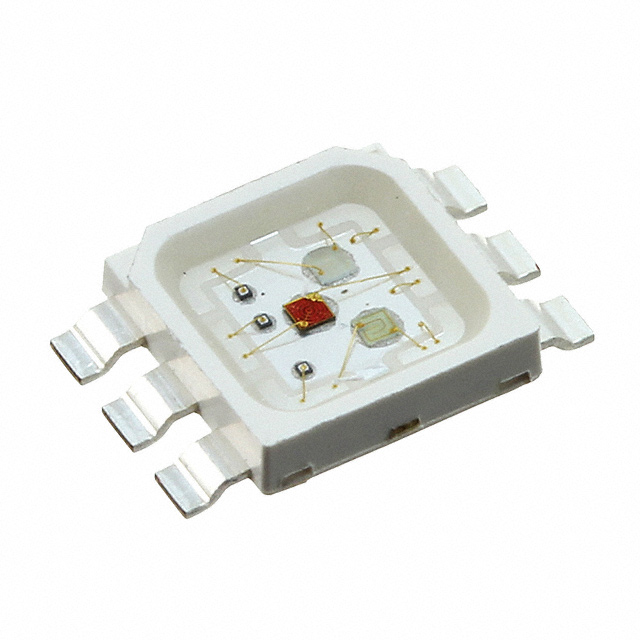

| Part Number | AAAF5051-05 | AAAF5060BRGS-11 | AAAF5060PBESEEVGEC | AAAF5060QBDZGSEEC |
| Manufacturer | Kingbright | Kingbright | Kingbright | Kingbright |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED RGB CLEAR 6SMD | LED RGB CLEAR SMD | LED BLUE/GREEN/ORANGE CLEAR SMD | LED RGB CLEAR SMD |
| Series | Kingbright | Kingbright | Kingbright | Kingbright |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
