AAT001-10E
lmages are for reference only.AAT001-10E

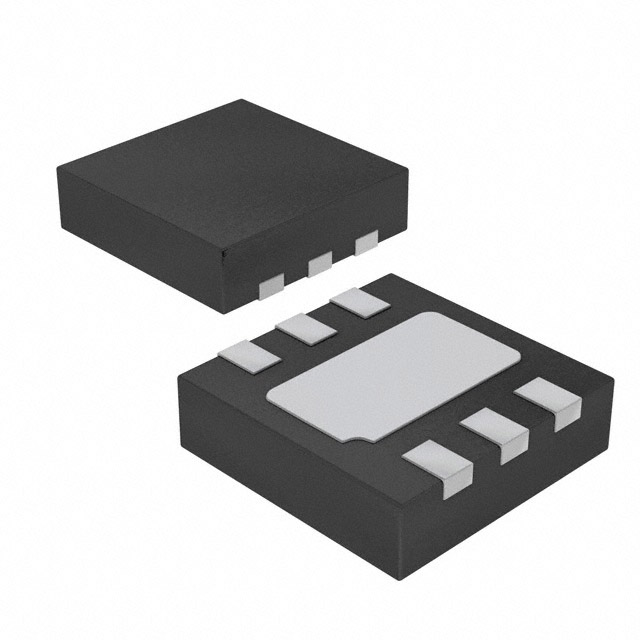

SENSOR ANGLE 360DEG SMD
Datasheet6-WDFN Exposed Pad
67,349 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Magnetoresistive Sensor Angle External Magnet, Not Included SMD (SMT) Tab
AAT001-10E
| Category | Sensors, Transducers - Position Sensors - Angle-Linear Position Measuring |
| Manufacturer | NVE Corp/Sensor Products |
| Series | AAT |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| For Measuring | Angle |
| Technology | Magnetoresistive |
| Rotation Angle - Electrical, Mechanical | 0° ~ 360°, Continuous |
| Linear Range | - |
| Output | Resistive |
| Output Signal | - |
| Actuator Type | External Magnet, Not Included |
| Linearity | - |
| Resistance | 2.5 MOhms |
| Resistance Tolerance | - |
| Voltage - Supply | 5.5V |
| Mounting Type | Surface Mount |
| Termination Style | SMD (SMT) Tab |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-TDFN (2.5x2.5) |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | AAT003-10E | AAT006-10E | AAT009-10E | MLX90513GGO-CAA-100-SP |
| Manufacturer | NVE Corp/Sensor Products | NVE Corp/Sensor Products | NVE Corp/Sensor Products | Melexis Technologies NV |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | SENSOR ANGLE 360DEG SMD | SENSOR ANGLE 360DEG SMD | SENSOR ANGLE 360DEG SMD | INDUCTIVE POSITION SENSOR ASSP W |
| Series | AAT | AAT | AAT | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
