AB-A36CLCH-R-100.000MHZ
lmages are for reference only.AB-A36CLCH-R-100.000MHZ
XTAL OSC VCXO 100MHZ 3.3V LVPECL
Datasheet6-SMD Module
76,134 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
100 MHz VCXO LVPECL, PECL Oscillator 3.3V Enable/Disable 6-SMD Module
AB-A36CLCH-R-100.000MHZ
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Abracon LLC |
| Series | AB-x36C |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | VCXO |
| Frequency | 100 MHz |
| Function | Enable/Disable |
| Output | LVPECL, PECL |
| Voltage - Supply | 3.3V |
| Frequency Stability | ±30ppm |
| Absolute Pull Range (APR) | ±100ppm |
| Operating Temperature | -20°C ~ 70°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 80mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD Module |
| Size / Dimension | 0.550" L x 0.240" W (13.97mm x 6.10mm) |
| Height - Seated (Max) | 0.255" (6.48mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
|

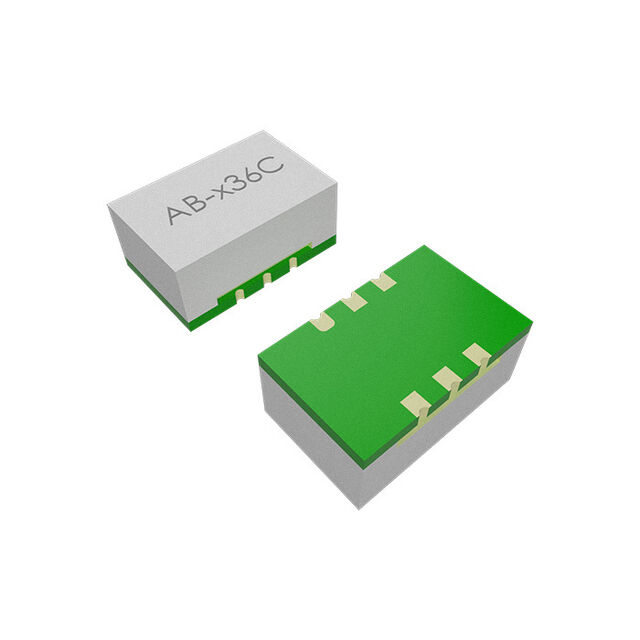

| Part Number | AB-A36CLDF-R-150.000MHZ | AB-A36CLDF-R-245.76MHZ | ABCM-60-10.000MHZ-BC-FG | ABCM-60-10.000MHZ-BC-FK |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | XTAL OSC VCXO 150MHZ 3.3V LVPECL | XTAL OSC VCXO 245.76MHZ 3.3V LVP | XTAL OSC OCXO 10MHZ CMOS TH | XTAL OSC OCXO 10MHZ CMOS TH |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Strip | Strip | Box | Box |
