AB2535B861
lmages are for reference only.AB2535B861
RF FILTER BAND PASS 2.535GHZ MOD
DatasheetModule, SMA Connectors
70,411 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2.535GHz Center Frequency Band Pass RF Filter (Radio Frequency) 70MHz Bandwidth 1dB Module, SMA Connectors
AB2535B861
| Category | Filters - RF Filters - |
| Manufacturer | Anatech Electronics Inc. |
| Series | - |
| Packaging | Box |
| RoHS Status | Not applicable |
| Frequency | 2.535GHz Center |
| Bandwidth | 70MHz |
| Filter Type | Band Pass |
| Ripple | - |
| Insertion Loss | 1dB |
| Mounting Type | Chassis Mount |
| Package / Case | Module, SMA Connectors |
| Size / Dimension | 5.472" L x 2.677" W (139.00mm x 68.00mm) |
| Height (Max) | 1.181" (30.00mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
|

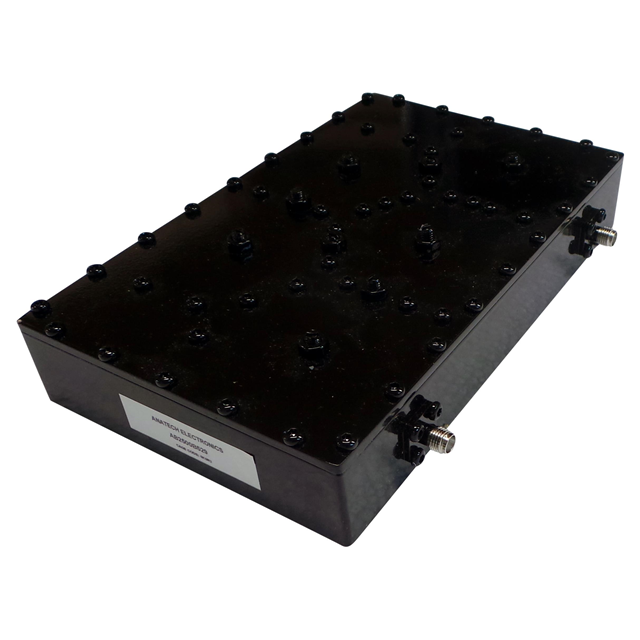

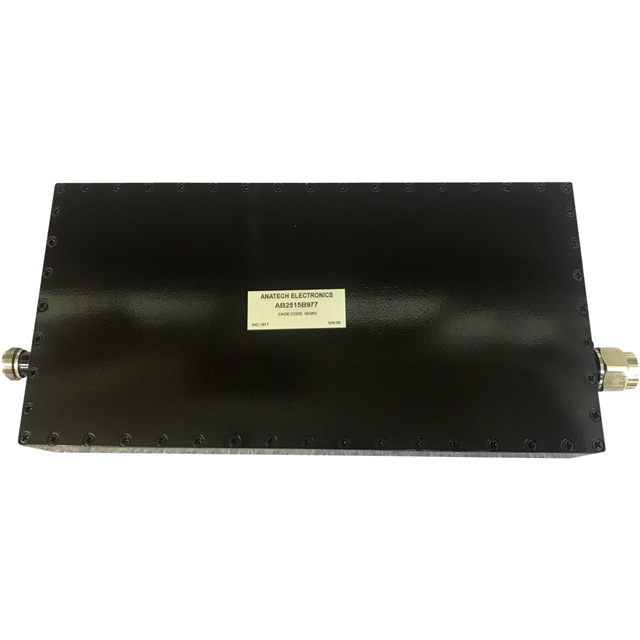

| Part Number | AB2500B1055 | AB2500B529 | AB2515B977 | AB2592B763-NF |
| Manufacturer | Anatech Electronics Inc. | Anatech Electronics Inc. | Anatech Electronics Inc. | Anatech Electronics Inc. |
| RoHS Status | Not applicable | ROHS3 Compliant | Not applicable | Not applicable |
| Description | RF FILTER BANDPASS 2.5GHZ MODULE | RF FILTER BANDPASS 2.5GHZ MODULE | RF FILTER BAND PASS 2.515GHZ MOD | RF FILTER BAND PASS 2.592GHZ MOD |
| Series | - | - | - | - |
| Packaging | Box | Box | Box | Box |
