ABDFTCXO-24.576MHZ-L-2-T2

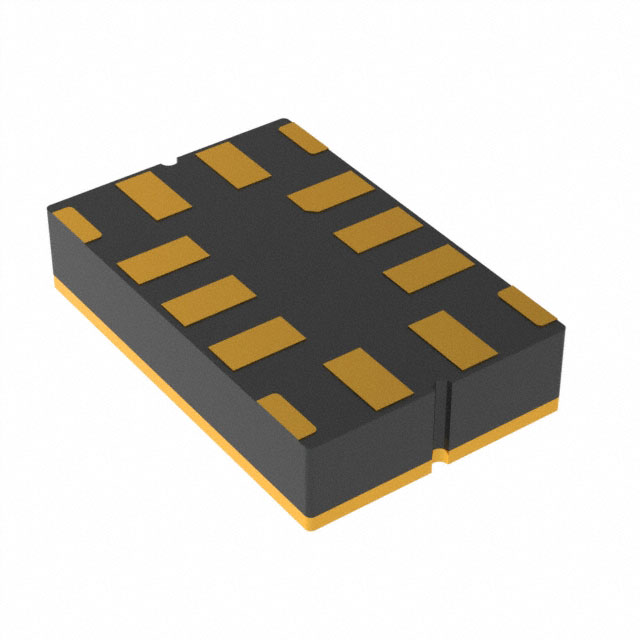

lmages are for reference only.ABDFTCXO-24.576MHZ-L-2-T2
XTAL OSC TCXO 24.5760MHZ LVCMOS
Datasheet14-SMD, No Lead
32,454 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
24.576 MHz TCXO LVCMOS Oscillator 3.3V 14-SMD, No Lead
ABDFTCXO-24.576MHZ-L-2-T2
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Abracon LLC |
| Series | ABDFTCXO |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | TCXO |
| Frequency | 24.576 MHz |
| Function | - |
| Output | LVCMOS |
| Voltage - Supply | 3.3V |
| Frequency Stability | ±280ppb |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 20mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-SMD, No Lead |
| Size / Dimension | 0.559" L x 0.360" W (14.20mm x 9.15mm) |
| Height - Seated (Max) | 0.122" (3.10mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
|
|
| Part Number | ABDFTCXO-20.000MHZ-L-2-CT | ABDFTCXO-26.000MHZ-E-2-CT | ABDFTCXO-10.000MHZ-E-2-CT | ABDFTCXO-10.000MHZ-E-2-T5 |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | XTAL OSC TCXO 20.0000MHZ LVCMOS | XTAL OSC TCXO 26.0000MHZ LVCMOS | XTAL OSC TCXO 10.0000MHZ LVCMOS | XTAL OSC TCXO 10.0000MHZ LVCMOS |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Strip | Strip | Strip | Tape & Reel (TR) |
