ABLSG-11.0592MHZ-D2Y-T

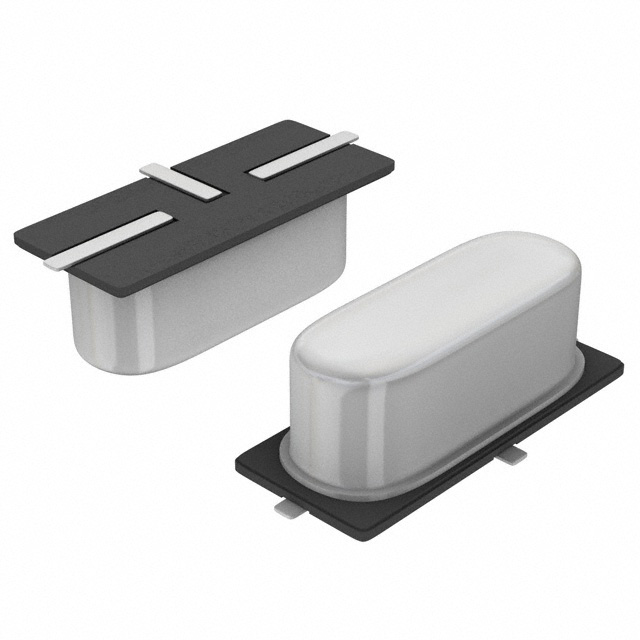

lmages are for reference only.ABLSG-11.0592MHZ-D2Y-T
CRYSTAL 11.0592MHZ 18PF SMD
DatasheetHC-49/US - 3 Lead
52,202 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
11.0592 MHz ±20ppm Crystal 18pF 50 Ohms HC-49/US - 3 Lead
ABLSG-11.0592MHZ-D2Y-T
| Category | Crystals, Oscillators, Resonators - Crystals - |
| Manufacturer | Abracon LLC |
| Series | ABLSG |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | MHz Crystal |
| Frequency | 11.0592 MHz |
| Frequency Stability | ±30ppm |
| Frequency Tolerance | ±20ppm |
| Load Capacitance | 18pF |
| ESR (Equivalent Series Resistance) | 50 Ohms |
| Operating Mode | Fundamental |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | HC-49/US - 3 Lead |
| Size / Dimension | 0.449" L x 0.185" W (11.40mm x 4.70mm) |
| Height - Seated (Max) | 0.165" (4.20mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
 |
| Part Number | ABLSG-11.0592MHZ-D2Y-T | ABLSG-10.000MHZ-D2Y-T | ABLSG-10.000MHZ-D2Y-T | ABLSG-10.240MHZ-D2Y-T |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CRYSTAL 11.0592MHZ 18PF SMD | CRYSTAL 10.0000MHZ 18PF SMD | CRYSTAL 10.0000MHZ 18PF SMD | CRYSTAL 10.2400MHZ 18PF SMD |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
