ABM10W-19.6875MHZ-6-J2Z-T3

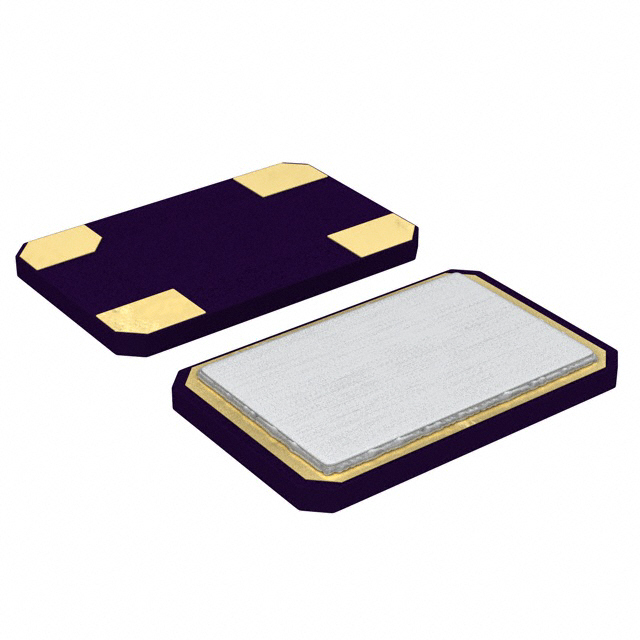

lmages are for reference only.ABM10W-19.6875MHZ-6-J2Z-T3
CRYSTAL 19.6875MHZ 6PF SMD
Datasheet4-SMD, No Lead
73,080 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
19.6875 MHz ±20ppm Crystal 6pF 70 Ohms 4-SMD, No Lead
ABM10W-19.6875MHZ-6-J2Z-T3
| Category | Crystals, Oscillators, Resonators - Crystals - |
| Manufacturer | Abracon LLC |
| Series | ABM10W |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | MHz Crystal |
| Frequency | 19.6875 MHz |
| Frequency Stability | ±50ppm |
| Frequency Tolerance | ±20ppm |
| Load Capacitance | 6pF |
| ESR (Equivalent Series Resistance) | 70 Ohms |
| Operating Mode | Fundamental |
| Operating Temperature | -40°C ~ 105°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
 |
| Part Number | ABM10W-19.6875MHZ-6-J2Z-T3 | ABM10W-19.6875MHZ-7-D1X-T3 | ABM10W-19.6875MHZ-7-D1X-T3 | ABM10W-19.6800MHZ-6-J1Z-T3 |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CRYSTAL 19.6875MHZ 6PF SMD | CRYSTAL 19.6875MHZ 7PF SMD | CRYSTAL 19.6875MHZ 7PF SMD | CRYSTAL 19.6800MHZ 6PF SMD |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
