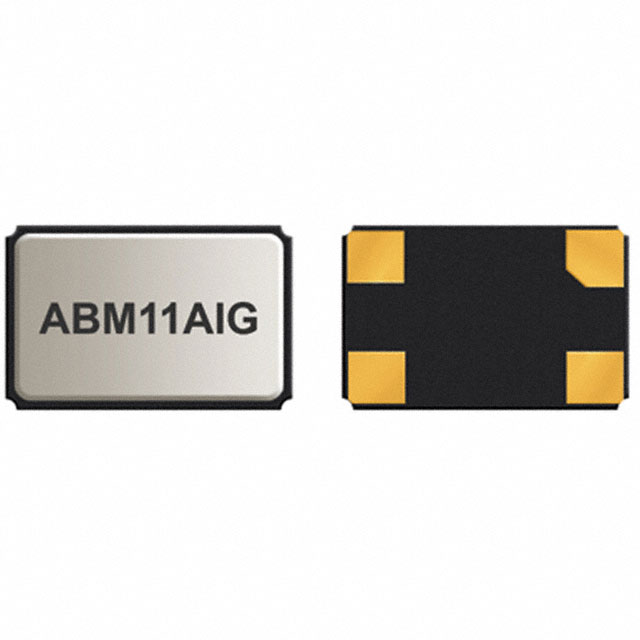

ABM11AIG-48.000MHZ-7-4Z-T
lmages are for reference only.ABM11AIG-48.000MHZ-7-4Z-T
CRYSTAL 48.0000MHZ 7PF SMD
Datasheet4-SMD, No Lead
31,797 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
48 MHz ±30ppm Crystal 7pF 50 Ohms 4-SMD, No Lead
ABM11AIG-48.000MHZ-7-4Z-T
| Category | Crystals, Oscillators, Resonators - Crystals - |
| Manufacturer | Abracon LLC |
| Series | ABM11AIG |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | MHz Crystal |
| Frequency | 48 MHz |
| Frequency Stability | ±50ppm |
| Frequency Tolerance | ±30ppm |
| Load Capacitance | 7pF |
| ESR (Equivalent Series Resistance) | 50 Ohms |
| Operating Mode | Fundamental |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | AEC-Q200 |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.022" (0.55mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
 |
| Part Number | ABM11AIG-48.000MHZ-7-4Z-T | ABM11AIG-48.000MHZ-1-T | ABM11AIG-48.000MHZ-1-T | ABM11AIG-48.000MHZ-1Z-T |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CRYSTAL 48.0000MHZ 7PF SMD | CRYSTAL 48.0000MHZ 10PF SMD | CRYSTAL 48.0000MHZ 10PF SMD | CRYSTAL 48.0000MHZ 10PF SMD |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
