ABM13W-38.4000MHZ-7-J1Z-T5

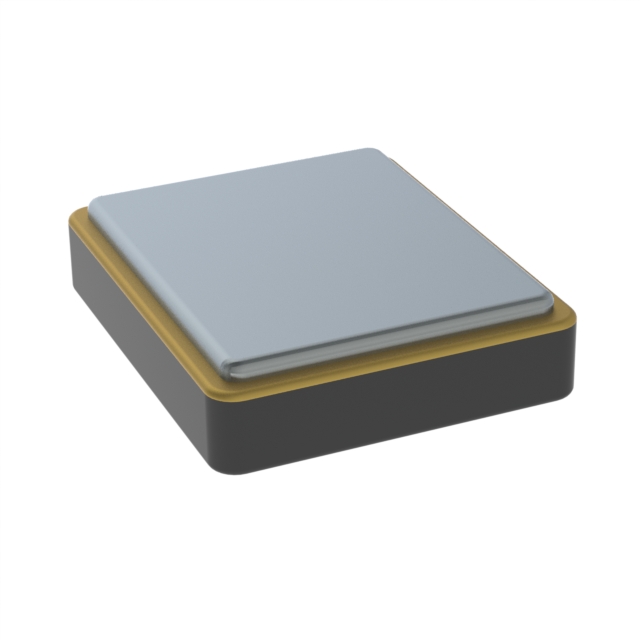

lmages are for reference only.ABM13W-38.4000MHZ-7-J1Z-T5
CRYSTAL 38.4000MHZ 7PF SMD
Datasheet4-SMD, No Lead
20,470 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
38.4 MHz ±10ppm Crystal 7pF 50 Ohms 4-SMD, No Lead
ABM13W-38.4000MHZ-7-J1Z-T5
| Category | Crystals, Oscillators, Resonators - Crystals - |
| Manufacturer | Abracon LLC |
| Series | ABM13W |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | MHz Crystal |
| Frequency | 38.4 MHz |
| Frequency Stability | ±50ppm |
| Frequency Tolerance | ±10ppm |
| Load Capacitance | 7pF |
| ESR (Equivalent Series Resistance) | 50 Ohms |
| Operating Mode | Fundamental |
| Operating Temperature | -40°C ~ 105°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.047" L x 0.039" W (1.20mm x 1.00mm) |
| Height - Seated (Max) | 0.013" (0.33mm) |
| Base Product Number | - |
| Product Attribute |  |
|
|
 |
| Part Number | ABM13W-38.4000MHZ-7-DH7G-T5 | ABM13W-38.4000MHZ-7-DH7G-T5 | ABM13W-38.4000MHZ-7-J1Z-T5 | ABM13W-38.4000MHZ-5-B2G-T5 |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CRYSTAL 38.4000MHZ 7PF SMD | CRYSTAL 38.4000MHZ 7PF SMD | CRYSTAL 38.4000MHZ 7PF SMD | CRYSTAL 38.4000MHZ 5PF SMD |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
