ABM7-13.560MHZ-10-R50-D4Q-T

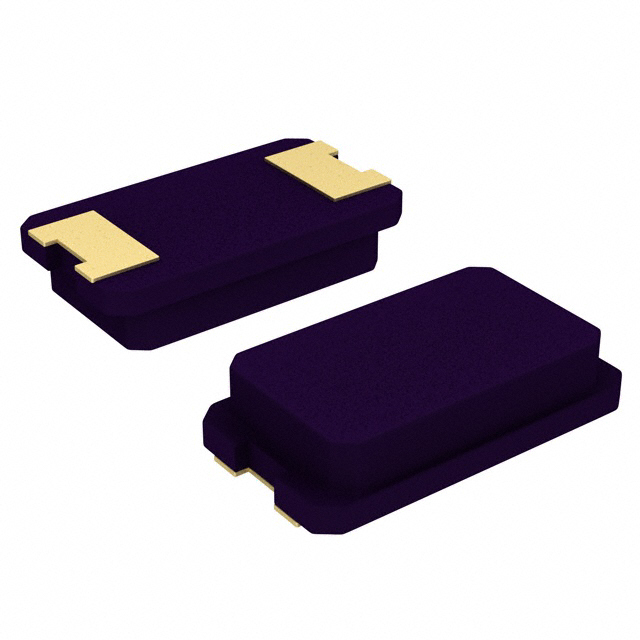

lmages are for reference only.ABM7-13.560MHZ-10-R50-D4Q-T
CRYSTAL 13.5600MHZ 10PF SMD
Datasheet2-SMD, No Lead
84,248 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
13.56 MHz ±30ppm Crystal 10pF 50 Ohms 2-SMD, No Lead
ABM7-13.560MHZ-10-R50-D4Q-T
| Category | Crystals, Oscillators, Resonators - Crystals - |
| Manufacturer | Abracon LLC |
| Series | ABM7 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | MHz Crystal |
| Frequency | 13.56 MHz |
| Frequency Stability | ±100ppm |
| Frequency Tolerance | ±30ppm |
| Load Capacitance | 10pF |
| ESR (Equivalent Series Resistance) | 50 Ohms |
| Operating Mode | Fundamental |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension | 0.236" L x 0.138" W (6.00mm x 3.50mm) |
| Height - Seated (Max) | 0.055" (1.40mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
 |
| Part Number | ABM7-13.560MHZ-10-R50-D4Q-T | ABM7-13.560MHZ-10-R50-K4Q-T | ABM7-13.560MHZ-10-R50-K4Q-T | ABM7-13.560MHZ-D2Y-T |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CRYSTAL 13.5600MHZ 10PF SMD | CRYSTAL 13.5600MHZ 10PF SMD | CRYSTAL 13.5600MHZ 10PF SMD | CRYSTAL 13.5600MHZ 18PF SMD |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
