ABM81-16.000MHZ-10-B1U-T3

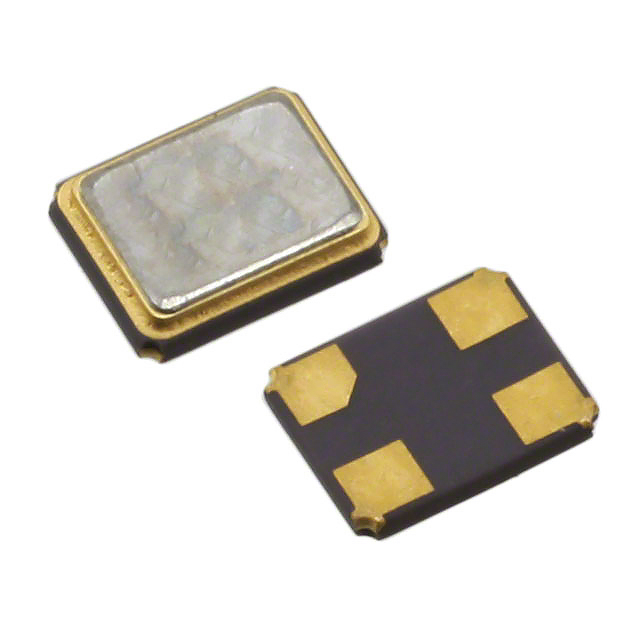

lmages are for reference only.ABM81-16.000MHZ-10-B1U-T3
CRYSTAL 16.0000MHZ 10PF SMD
Datasheet4-SMD, No Lead
56,115 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
16 MHz ±10ppm Crystal 10pF 70 Ohms 4-SMD, No Lead
ABM81-16.000MHZ-10-B1U-T3
| Category | Crystals, Oscillators, Resonators - Crystals - |
| Manufacturer | Abracon LLC |
| Series | ABM8 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | MHz Crystal |
| Frequency | 16 MHz |
| Frequency Stability | ±10ppm |
| Frequency Tolerance | ±10ppm |
| Load Capacitance | 10pF |
| ESR (Equivalent Series Resistance) | 70 Ohms |
| Operating Mode | Fundamental |
| Operating Temperature | -20°C ~ 70°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.028" (0.70mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
 |
| Part Number | ABM81-16.000MHZ-10-B1U-T3 | ABM81-16.000MHZ-B4Y-T3 | ABM81-16.000MHZ-B4Y-T3 | ABM8-10.000MHZ-12-R100-D3Y-T |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CRYSTAL 16.0000MHZ 10PF SMD | CRYSTAL 16.0000MHZ 18PF SMD | CRYSTAL 16.0000MHZ 18PF SMD | CRYSTAL 10.0000MHZ 12PF SMD |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
