ABP2DANN005NG2B3XX

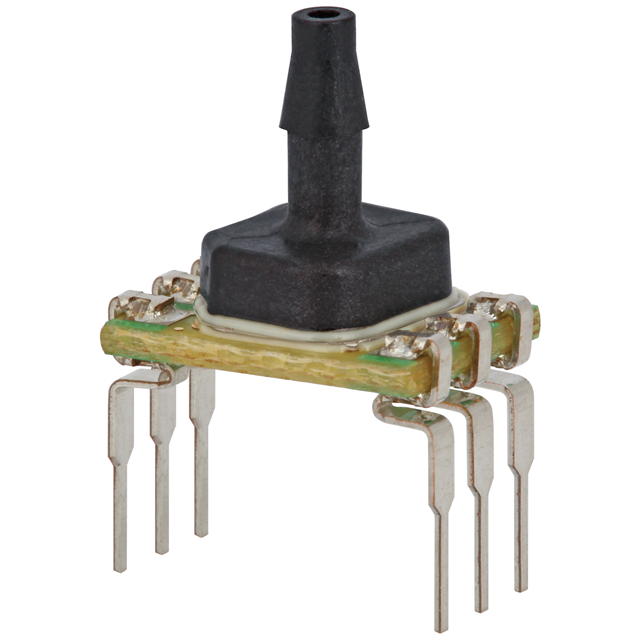

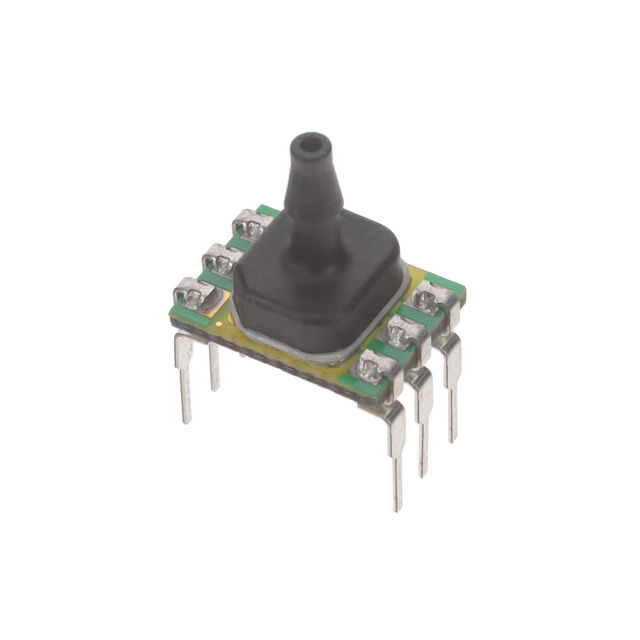

lmages are for reference only.ABP2DANN005NG2B3XX
ABP2, DIP, NO DIAGNOSTICS, PLAST
Datasheet6-DIP (0.453", 11.50mm), Top Port
12,828 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 0.18PSI (1.25kPa) Gauge Male - 0.11" (2.79mm) Tube 14 b 6-DIP (0.453", 11.50mm), Top Port
ABP2DANN005NG2B3XX
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | ABP2 |
| Packaging | Bulk |
| RoHS Status | |
| Base Product Number | - |
| Applications | Medical Ventilation |
| Pressure Type | Gauge |
| Operating Pressure | 0.18PSI (1.25kPa) |
| Output Type | I2C |
| Output | 14 b |
| Accuracy | ±0.25% |
| Voltage - Supply | 1.8V ~ 3.6V |
| Port Size | Male - 0.11" (2.79mm) Tube |
| Port Style | Barbed |
| Features | Amplified Output, Temperature Compensated |
| Termination Style | PC Pins |
| Maximum Pressure | 9.75PSI (67.25kPa) |
| Operating Temperature | -40°C ~ 110°C |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP (0.453", 11.50mm), Top Port |
| Supplier Device Package | 6-DIP |
| Grade | - |
| Qualification | - |
| Product Attribute | |
|
|
|
| Part Number | ABP2DANN005NG2B3XX | ABP2DANN005NGSB3XX | ABP2DANG015PDSA3XX | ABP2DANG015PDSA3XX |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | ||||
| Description | ABP2, DIP, NO DIAGNOSTICS, PLAST | ABP2, DIP, NO DIAGNOSTICS, PLAST | ABP2, DIP, AN PORT | ABP2, DIP, AN PORT |
| Series | ABP2 | ABP2 | ABP2 | ABP2 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
