ABSM2-7.3728MHZ-4-T

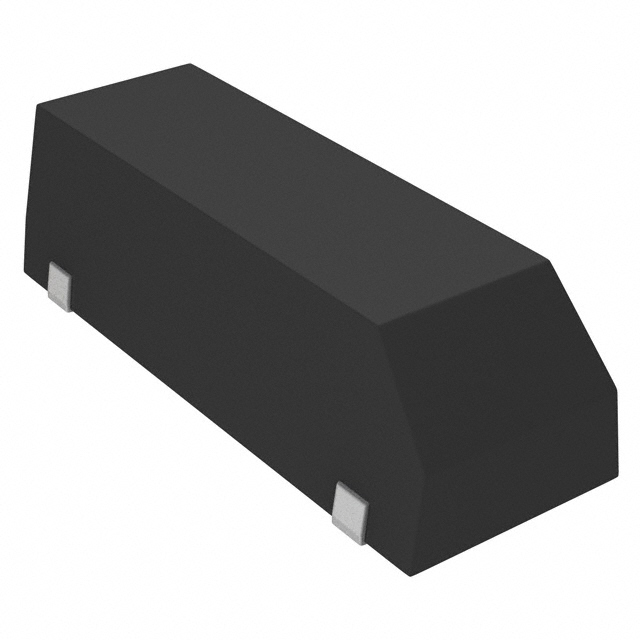

lmages are for reference only.ABSM2-7.3728MHZ-4-T
CRYSTAL 7.3728MHZ 18PF SMD
Datasheet4-SOJ, 9.40mm pitch
43,344 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
7.3728 MHz ±30ppm Crystal 18pF 100 Ohms 4-SOJ, 9.40mm pitch
ABSM2-7.3728MHZ-4-T
| Category | Crystals, Oscillators, Resonators - Crystals - |
| Manufacturer | Abracon LLC |
| Series | ABSM2 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | MHz Crystal |
| Frequency | 7.3728 MHz |
| Frequency Stability | ±50ppm |
| Frequency Tolerance | ±30ppm |
| Load Capacitance | 18pF |
| ESR (Equivalent Series Resistance) | 100 Ohms |
| Operating Mode | Fundamental |
| Operating Temperature | -10°C ~ 60°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SOJ, 9.40mm pitch |
| Size / Dimension | 0.492" L x 0.181" W (12.50mm x 4.60mm) |
| Height - Seated (Max) | 0.146" (3.70mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
|
| Part Number | ABSM2-7.3728MHZ-4-T | ABSM2-10.000MHZ-4-T | ABSM2-10.000MHZ-4-T | ABSM2-10.000MHZ-4-T |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CRYSTAL 7.3728MHZ 18PF SMD | CRYSTAL 10.0000MHZ 18PF SMD | CRYSTAL 10.0000MHZ 18PF SMD | CRYSTAL 10.0000MHZ 18PF SMD |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
