AC05000001507JAC00

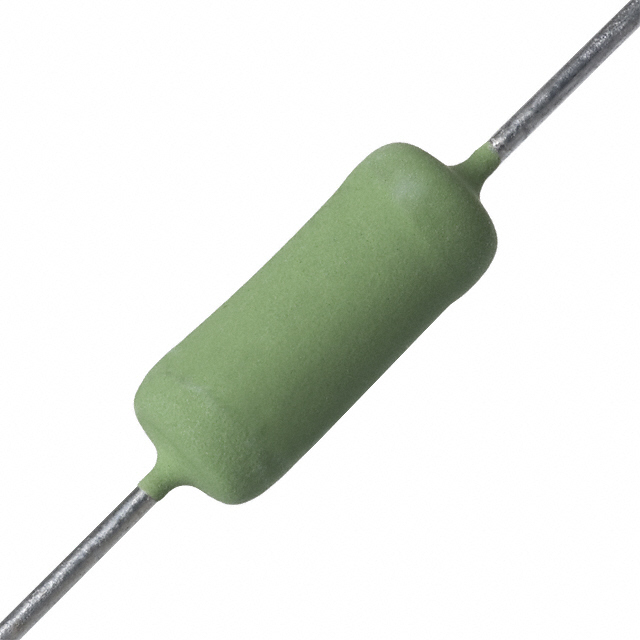

lmages are for reference only.AC05000001507JAC00
RES 0.15 OHM 5W 5% AXIAL
DatasheetAxial
13,997 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
150 mOhms ±5% 5W Through Hole Resistor Axial Flame Retardant Coating, Pulse Withstanding, Safety Wirewound
AC05000001507JAC00
| Category | Resistors - Through Hole Resistors - |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components |
| Series | AC |
| Packaging | Cut Tape (CT)-->Tape & Box (TB) |
| RoHS Status | ROHS3 Compliant |
| Resistance | 150 mOhms |
| Tolerance | ±5% |
| Power (Watts) | 5W |
| Composition | Wirewound |
| Features | Flame Retardant Coating, Pulse Withstanding, Safety |
| Temperature Coefficient | -10/ -80ppm/°C |
| Operating Temperature | -40°C ~ 275°C |
| Package / Case | Axial |
| Supplier Device Package | Axial |
| Size / Dimension | 0.295" Dia x 0.709" L (7.50mm x 18.00mm) |
| Height - Seated (Max) | - |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
|
 |
| Part Number | AC05000001500JAC00 | AC05000001501JAC00 | AC05000001508JAC00 | AC05000001509JAC00 |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES 150 OHM 5W 5% AXIAL | RES 1.5K OHM 5W 5% AXIAL | RES 1.5 OHM 5W 5% AXIAL | RES 15 OHM 5W 5% AXIAL |
| Series | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| Packaging | Cut Tape (CT)-->Tape & Box (TB) | Cut Tape (CT)-->Tape & Box (TB) | Cut Tape (CT)-->Tape & Box (TB) | Cut Tape (CT)-->Tape & Box (TB) |
