ACFL-6212T-000E

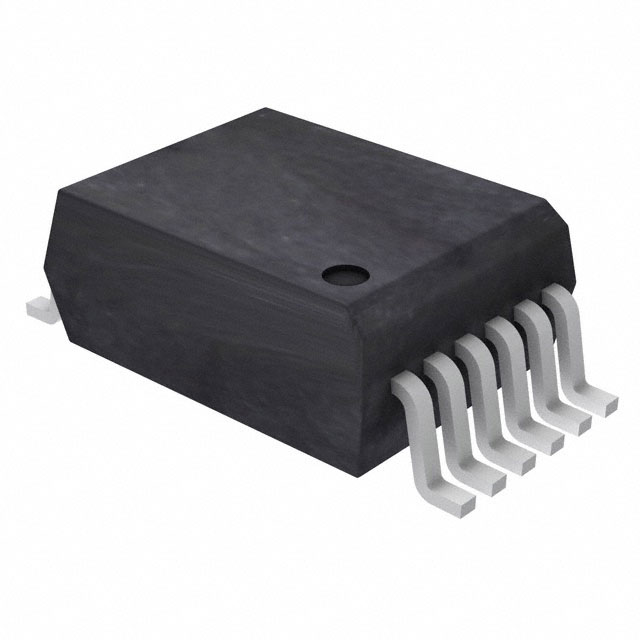

lmages are for reference only.ACFL-6212T-000E
OPTOISO 5KV 2CH PSH PULL SO12
Datasheet12-BSOP (0.295", 7.50mm Width)
71,844 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Logic Output Optoisolator 15MBd Push-Pull, Totem Pole 5000Vrms 2 Channel 15kV/µs CMTI 12-SO
ACFL-6212T-000E
| Category | Isolators - Optoisolators - Logic Output Optoisolators |
| Manufacturer | Broadcom Limited |
| Series | R²Coupler™ |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Number of Channels | 2 |
| Inputs - Side 1/Side 2 | 1/1 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 15kV/µs |
| Input Type | DC |
| Output Type | Push-Pull, Totem Pole |
| Current - Output / Channel | 10 mA |
| Data Rate | 15MBd |
| Propagation Delay tpLH / tpHL (Max) | 100ns, 100ns |
| Rise / Fall Time (Typ) | 10ns, 10ns |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Current - DC Forward (If) (Max) | 20mA |
| Voltage - Supply | 3V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 12-BSOP (0.295", 7.50mm Width) |
| Supplier Device Package | 12-SO |
| Base Product Number | ACFL-6212 |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Product Attribute | |
 |
|
 |
| Part Number | ACFL-6212T-000E | ACFL-6212T-060E | ACFL-6212T-060E | ACFL-6212T-500E |
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | OPTOISO 5KV 2CH PSH PULL SO12 | OPTOISO 5KV 2CH PSH PULL SO12 | OPTOISO 5KV 2CH PSH PULL SO12 | OPTOISO 5KV 2CH PSH PULL SO12 |
| Series | R²Coupler™ | R²Coupler™ | R²Coupler™ | R²Coupler™ |
| Packaging | Tube | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
