ACPDUC5V0USP-HF

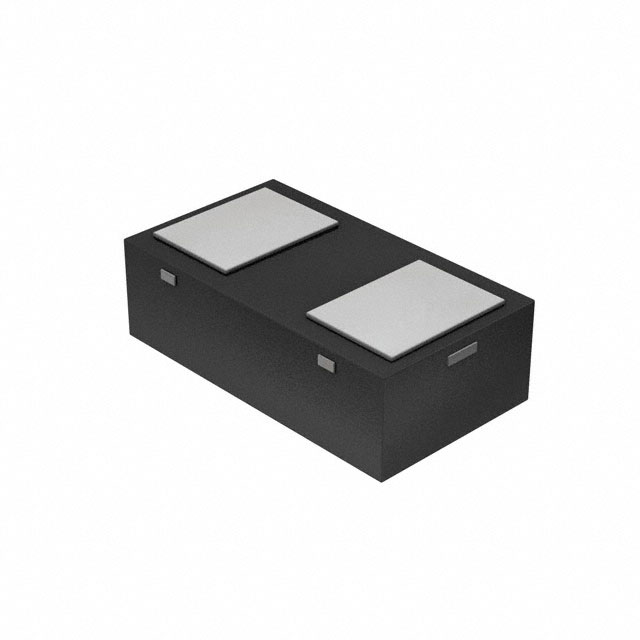

lmages are for reference only.ACPDUC5V0USP-HF
TVS DIODE 5VWM 20V 0603C/SOD523F
Datasheet0603 (1608 Metric)
63,337 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
20V Clamp 3A (8/20µs) Ipp Tvs Diode Surface Mount 0603C/SOD-523F
ACPDUC5V0USP-HF
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Comchip Technology |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | 5.4V |
| Voltage - Clamping (Max) @ Ipp | 20V |
| Current - Peak Pulse (10/1000µs) | 3A (8/20µs) |
| Power - Peak Pulse | 60W |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | 0.6pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603C/SOD-523F |
| Base Product Number | ACPDUC5 |
| Unidirectional Channels | 1 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |
| Part Number | ACPDUC5V0-HF | ACPDUC5V0R-HF | ACPDUC5V0U-HF | ACPDUC24V-HF |
| Manufacturer | Comchip Technology | Comchip Technology | Comchip Technology | Comchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 5VWM 15V 0603C/SOD523F | TVS DIODE 5VWM 12V 0603C/SOD523F | TVS DIODE 5V 12.5V 0603C/SOD523F | TVS DIODE 24VWM 47V 0603C/SOD523 |
| Series | Comchip Technology | Comchip Technology | Comchip Technology | Comchip Technology |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
