ACPL-5630L-100

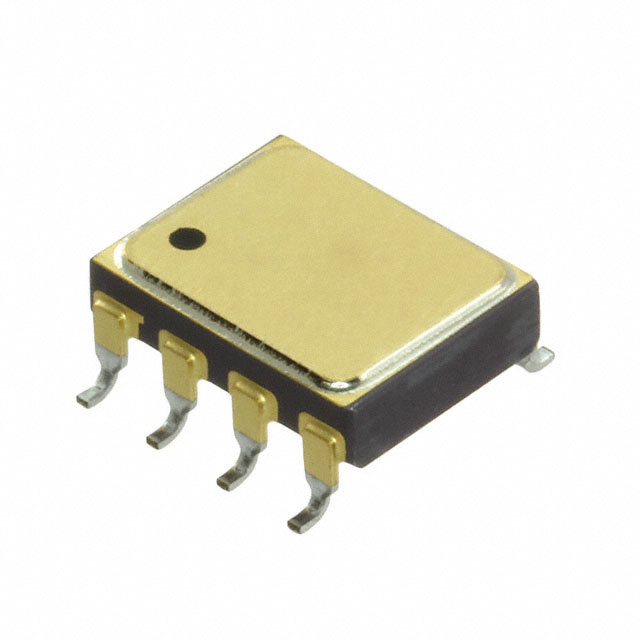

lmages are for reference only.ACPL-5630L-100
OPTOISO 1.5KV 2CH OPEN COLL 8SMD
Datasheet8-SMD Butt Joint
66,098 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Logic Output Optoisolator 10MBd Open Collector, Schottky Clamped 1500VDC 2 Channel 1kV/µs CMTI 8-DIP Butt Joint
ACPL-5630L-100
| Category | Isolators - Optoisolators - Logic Output Optoisolators |
| Manufacturer | Broadcom Limited |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Number of Channels | 2 |
| Inputs - Side 1/Side 2 | 2/0 |
| Voltage - Isolation | 1500VDC |
| Common Mode Transient Immunity (Min) | 1kV/µs |
| Input Type | DC |
| Output Type | Open Collector, Schottky Clamped |
| Current - Output / Channel | 25 mA |
| Data Rate | 10MBd |
| Propagation Delay tpLH / tpHL (Max) | 100ns, 100ns |
| Rise / Fall Time (Typ) | 20ns, 8ns |
| Voltage - Forward (Vf) (Typ) | 1.55V |
| Current - DC Forward (If) (Max) | 20mA |
| Voltage - Supply | 3V ~ 3.6V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD Butt Joint |
| Supplier Device Package | 8-DIP Butt Joint |
| Base Product Number | ACPL-5630 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
|
|
 |
| Part Number | ACPL-5630L-100 | ACPL-5630L-200 | ACPL-5630L-200 | ACPL-5630L-300 |
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | OPTOISO 1.5KV 2CH OPEN COLL 8SMD | OPTOISO 1.5KV 2CH OPEN COLL 8DIP | OPTOISO 1.5KV 2CH OPEN COLL 8DIP | OPTOISO 1.5KV OPEN COLL 8DIP GW |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
