ACPL-P345-560E

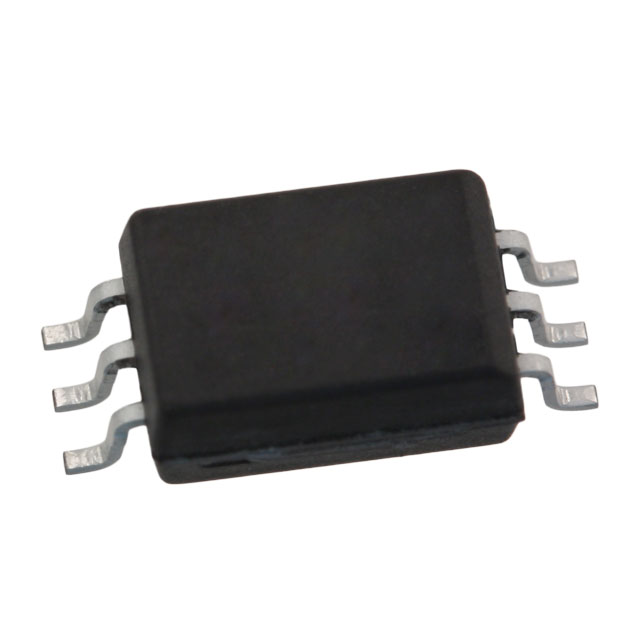

lmages are for reference only.ACPL-P345-560E
OPTOISO 3.75KV 1CH GATE DRVR 6SO
Datasheet6-SOIC (0.268", 6.80mm Width)
53,155 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1A Gate Driver Optical Coupling 3750Vrms 1 Channel 6-SO Stretched
ACPL-P345-560E
| Category | Isolators - Isolators Gate Drivers - |
| Manufacturer | Broadcom Limited |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Technology | Optical Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Common Mode Transient Immunity (Min) | 50kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 120ns, 120ns |
| Pulse Width Distortion (Max) | 50ns |
| Rise / Fall Time (Typ) | 8ns, 8ns |
| Current - Output High, Low | 800mA, 800mA |
| Current - Peak Output | 1A |
| Voltage - Forward (Vf) (Typ) | 1.55V |
| Voltage - Output Supply | 10V ~ 20V |
| Grade | - |
| Qualification | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.268", 6.80mm Width) |
| Supplier Device Package | 6-SO Stretched |
| Approval Agency | CSA, IEC/EN/DIN, UR |
| Base Product Number | ACPL-P345 |
| Current - DC Forward (If) (Max) | 25 mA |
| Product Attribute |  |
 |
 |
 |
| Part Number | ACPL-P345-500E | ACPL-P340-000E | ACPL-P340-060E | ACPL-P340-500E |
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | OPTOISO 3.75KV 1CH GATE DRVR 6SO | OPTOISO 3.75KV 1CH GATE DRVR 6SO | OPTOISO 3.75KV 1CH GATE DRVR 6SO | OPTOISO 3.75KV 1CH GATE DRVR 6SO |
| Series | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
