ACS37220LEZATR-100B5

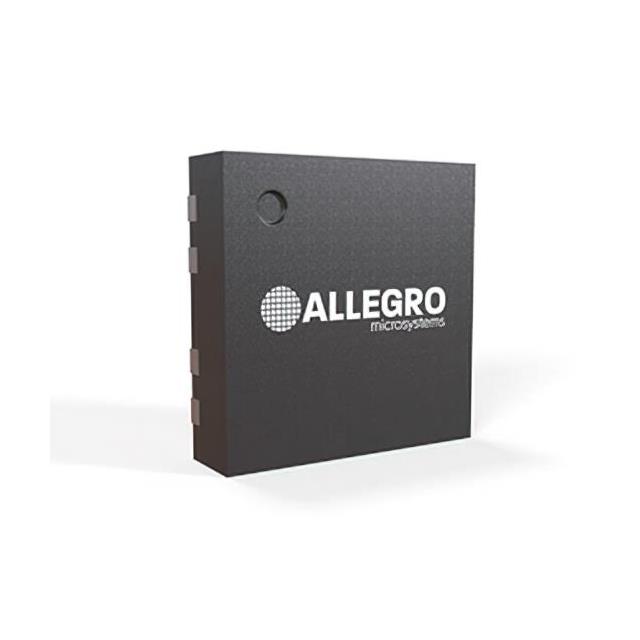

lmages are for reference only.ACS37220LEZATR-100B5
CURRENT SENSOR LOW-RESISTANCE
Datasheet7-PowerLQFN
21,522 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Current Sensor 100A 1 Channel Hall Effect Bidirectional 7-PowerLQFN
ACS37220LEZATR-100B5
| Category | Sensors, Transducers - Current Sensors - |
| Manufacturer | Allegro MicroSystems |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| For Measuring | DC |
| Sensor Type | Hall Effect |
| Current - Sensing | 100A |
| Number of Channels | 1 |
| Output | Analog Voltage |
| Sensitivity | 20mV/A |
| Frequency | DC ~ 150kHz |
| Linearity | - |
| Accuracy | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Response Time | 4µs |
| Current - Supply (Max) | 15.5mA |
| Operating Temperature | -40°C ~ 150°C |
| Polarization | Bidirectional |
| Mounting Type | Surface Mount, Wettable Flank |
| Package / Case | 7-PowerLQFN |
| Supplier Device Package | 7-QFN (4x4) |
| Base Product Number | - |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Product Attribute |  |
 |
 |
 |
| Part Number | ACS37220LEZATR-100B3 | ACS37220LEZATR-150B3 | ACS37220LEZATR-150B5 | ACS37220LEZATR-200B5 |
| Manufacturer | Allegro MicroSystems | Allegro MicroSystems | Allegro MicroSystems | Allegro MicroSystems |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CURRENT SENSOR LOW-RESISTANCE | CURRENT SENSOR LOW-RESISTANCE | CURRENT SENSOR LOW-RESISTANCE | CURRENT SENSOR LOW-RESISTANCE |
| Series | Allegro MicroSystems | Allegro MicroSystems | Allegro MicroSystems | Allegro MicroSystems |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
